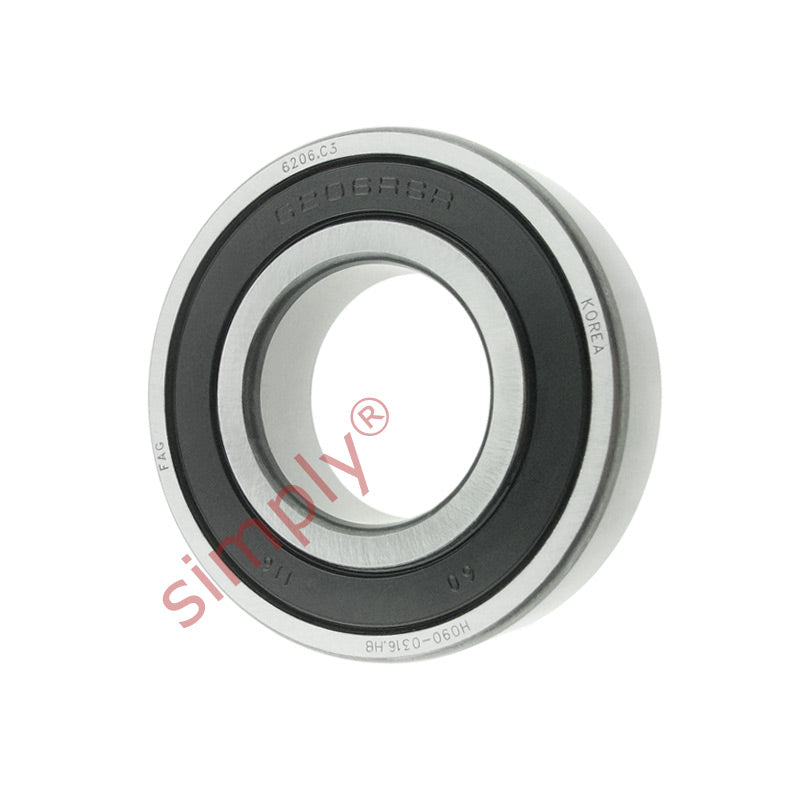

FAG 62062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x62x16mm
FAG
FAG 62062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x62x16mm
FAG

SKU: 6206-2RSR/C3-FAG

FAG 62062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x62x16mm

$22.74 ex VAT
$22.74
ex VAT
Equivalent to: 6206NSEC3 6206DUC3 6206RSC3 6206RSHC3 6206PC3 6206RSRC3 6206LUC3 62062NSEC3 6206DDUC3 62062RSC3 62062RS1C3 62062RSHC3 6206PPC3 6206LLU
In stock

Quantity Price Breaks

10+ $20.24
19+ $19.10
29+ $18.87
39+ $18.65
49+ $18.42
74+ $18.19
99+ $17.06
199+ $16.83
249+ $16.60
499+ $16.37
999+ $15.92
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 62062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x62x16mm
FAG
SKU: 6206-2RSR/C3-FAG

FAG 62062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x62x16mm

$22.74 ex VAT
$22.74
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 30mm
D = 62mm
B = 16mm
Dynamic load C = 20.3 kN
Static load Co = 11.2 kN
Fatigue load limit Pu = 0.475 kN
Reference speed = 24000 rpm
Limiting speed = 7500 rpm
Mass = 0.2 kg
d1 = 40.4mm
D2 = 54.1mm
r1r2 min = 1mm
da min = 35.6
