SKU: 6206-2RS1/C3WT-SKF

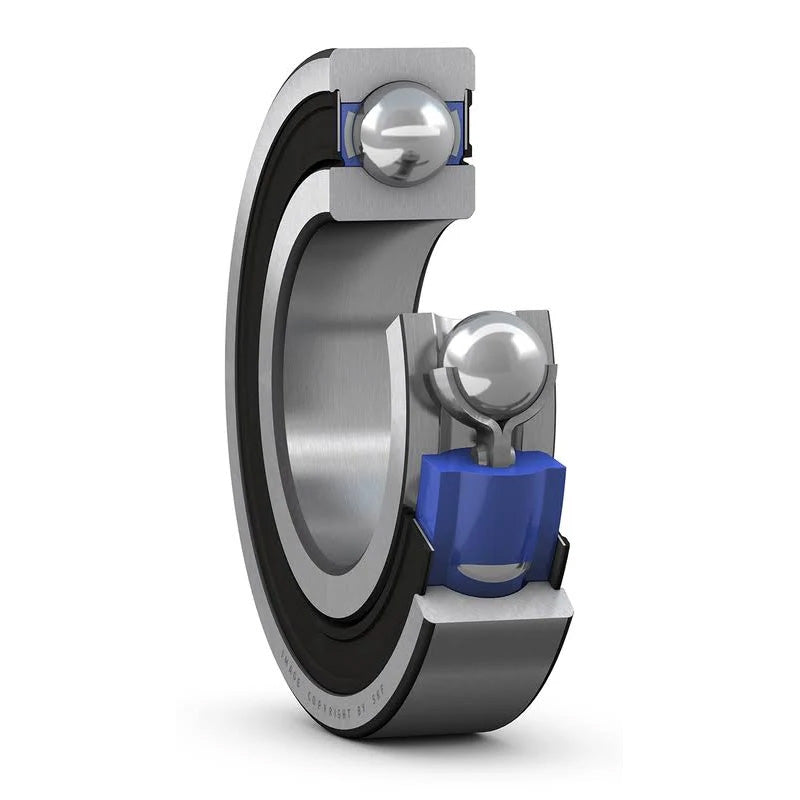

SKF 62062RS1C3WT Rubber Sealed Deep Groove Ball Bearing 30x62x16mm
- Regular price
- $67.74 ex VAT
- Sale price
- $67.74
- Regular price
-
In stock
Quantity Price Breaks
10+
$60.29
19+
$56.90
29+
$56.22
39+
$55.55
49+
$54.87
74+
$54.19
99+
$50.81
199+
$50.13
249+
$49.45
499+
$48.77
999+
$47.42
SKU:
6206-2RS1/C3WT-SKF
SKF 62062RS1C3WT Rubber Sealed Deep Groove Ball Bearing 30x62x16mm
- Regular price
- $67.74 ex VAT
- Sale price
- $67.74
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Technical
| d | = | 30mm |
| D | = | 62mm |
| B | = | 16mm |
| Dynamic load C | = | 20.3 kN |
| Static load Co | = | 11.2 kN |
| Fatigue load limit Pu | = | 0.475 kN |
| Reference speed | = | 24000 rpm |
| Limiting speed | = | 7500 rpm |
| Weight | = | 0.2 kg |
| d1 | = | 40.4mm |
| D2 | = | 54.1mm |
| r1r2 min | = | 1mm |
| da min | = | 35.6mm |
| Da max | = | 56.4mm |
| ra max | = | 1mm |
| Calculation factor kr | = | 0.025 |
| Calculation factor f0 | = | 14 |
