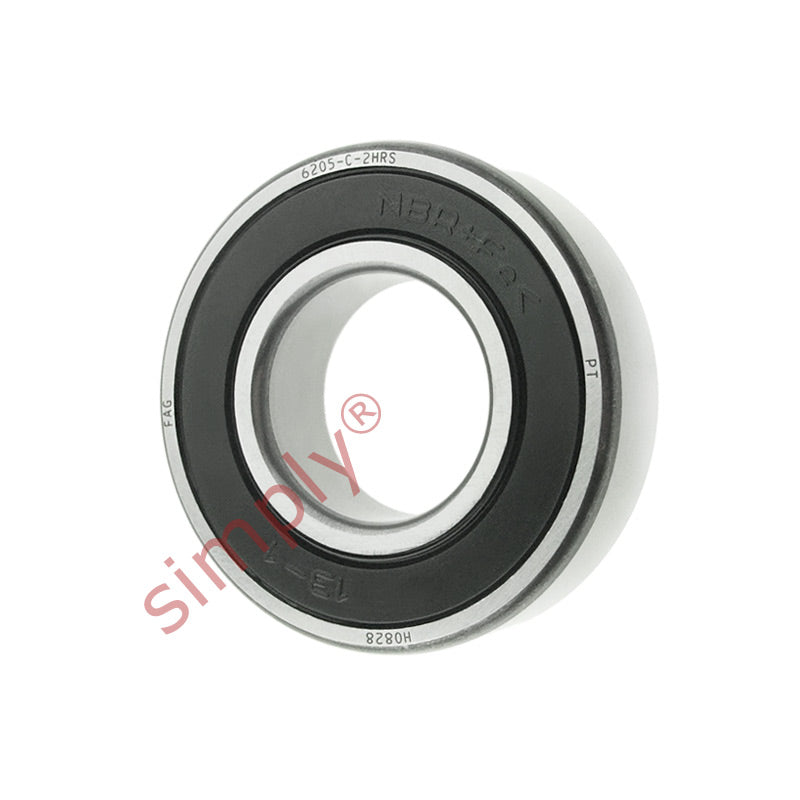

FAG 62052RSR Rubber Sealed Deep Groove Ball Bearing 25x52x15mm
FAG
FAG 62052RSR Rubber Sealed Deep Groove Ball Bearing 25x52x15mm
FAG

SKU: 6205-2RSR-FAG

FAG 62052RSR Rubber Sealed Deep Groove Ball Bearing 25x52x15mm

$17.09 ex VAT
$17.09
ex VAT
Equivalent to: 6205C2HRS 6205NSE 6205DU 6205RS 6205RSH 6205P 6205RSR 6205LU 62052NSE 6205DDU 62052RS 62052RS1 62052RSH 6205PP 6205LLU
In stock

Quantity Price Breaks

10+ $15.21
19+ $14.36
29+ $14.18
39+ $14.01
49+ $13.84
74+ $13.67
99+ $12.82
199+ $12.65
249+ $12.48
499+ $12.30
999+ $11.96
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 62052RSR Rubber Sealed Deep Groove Ball Bearing 25x52x15mm
FAG
SKU: 6205-2RSR-FAG

FAG 62052RSR Rubber Sealed Deep Groove Ball Bearing 25x52x15mm

$17.09 ex VAT
$17.09
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 25mm
D = 52mm
B = 15mm
Dynamic load C = 14.8 kN
Static load Co = 7.8 kN
Fatigue load limit Pu = 0.335 kN
Reference speed = 28000 rpm
Limiting speed = 8500 rpm
Mass = 0.13 kg
d2 = 31.8mm
D2 = 46.3mm
r1r2 min = 1mm
da min = 30.6
