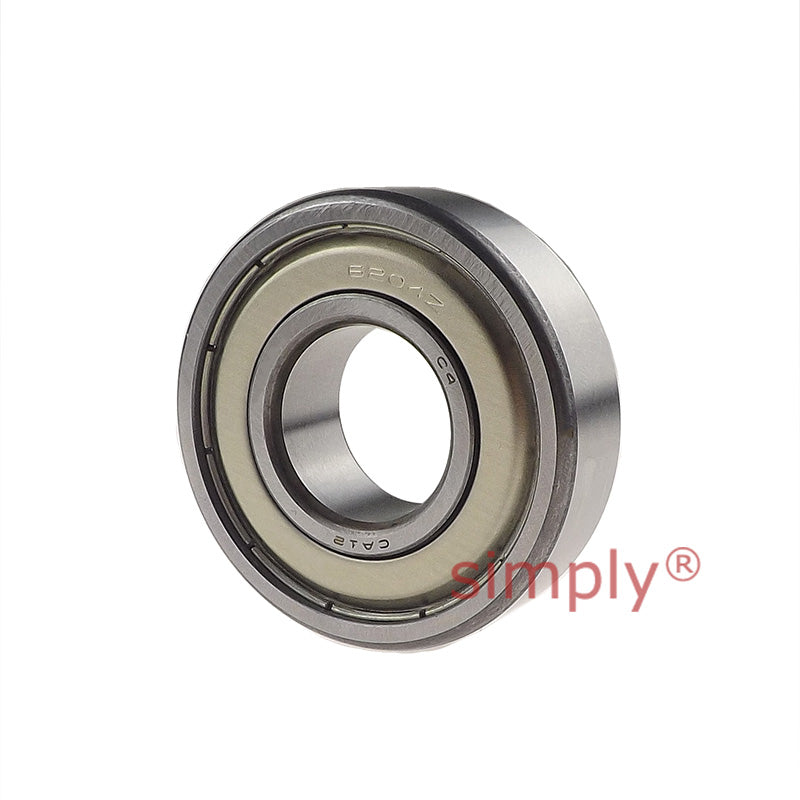

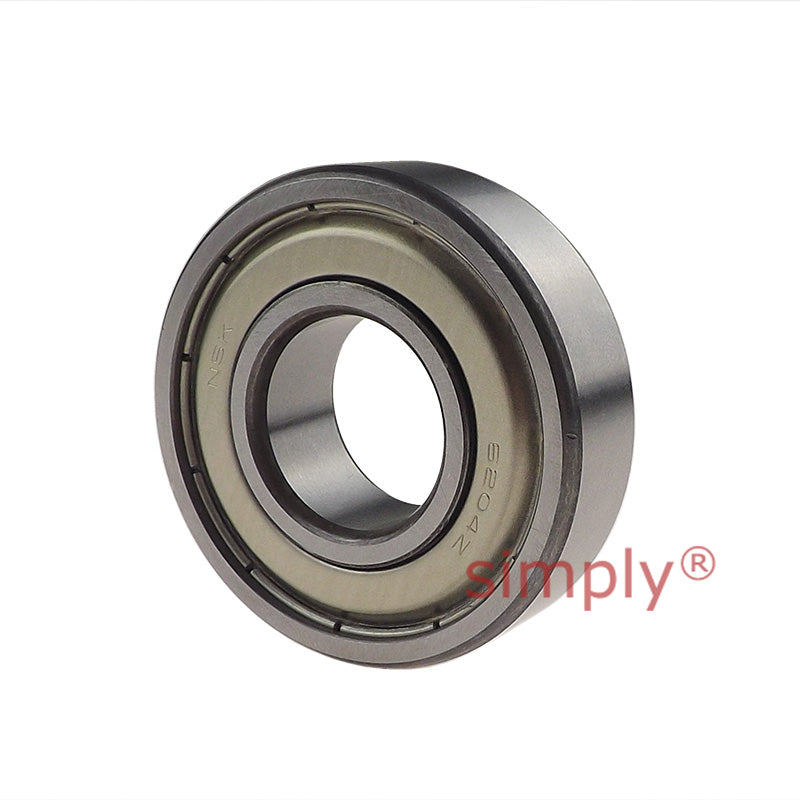

Major Branded 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Major Branded 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Major Branded 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Major Branded 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm

SKU: 6204-2Z/C4-MB

Major Branded 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm

$16.60 ex VAT
$16.60
ex VAT
Equivalent to: 6204ZZEC4 6204ZZC4 6204.2ZC4 6204KDDC4 6204DDC4 62042ZRC4 6204FFC4
In stock

Quantity Price Breaks

10+ $14.77
19+ $13.94
29+ $13.78
39+ $13.61
49+ $13.45
74+ $13.28
99+ $12.45
199+ $12.28
249+ $12.12
499+ $11.95
999+ $11.62
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Major Branded 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
SKU: 6204-2Z/C4-MB

Major Branded 62042ZC4 Metal Shielded Deep Groove Ball Bearing 20x47x14mm

$16.60 ex VAT
$16.60
ex VAT

Description

Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life,

Technical

d = 20mm
D = 47mm
B = 14mm
Dynamic load C = 13.5 kN
Static load Co = 6.55 kN
Fatigue load limit Pu = 0.28 kN
Reference speed = 32000 rpm
Limiting speed = 17000 rpm
Mass = 0.11 kg
d1 = 28.8mm
D2 = 40.6mm
r1r2 min = 1mm
da min = 25.6
