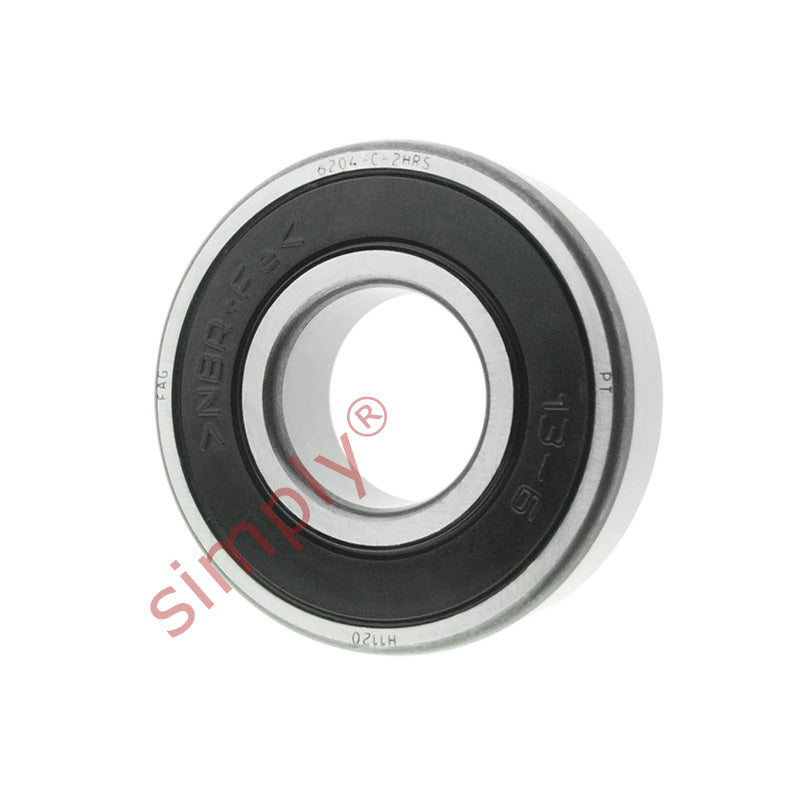

FAG 62042RSR Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
FAG
FAG 62042RSR Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
FAG

SKU: 6204-2RSR-FAG

FAG 62042RSR Rubber Sealed Deep Groove Ball Bearing 20x47x14mm

$14.63 ex VAT
$14.63
ex VAT
Equivalent to: 6204NSE 6204DU 6204RS 6204RSH 6204P 6204RSR 6204LU 62042NSE 6204DDU 62042RS 62042RS1 62042RSH 6204PP 6204LLU
In stock

Quantity Price Breaks

10+ $13.02
19+ $12.29
29+ $12.14
39+ $12.00
49+ $11.85
74+ $11.70
99+ $10.97
199+ $10.83
249+ $10.68
499+ $10.53
999+ $10.24
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 62042RSR Rubber Sealed Deep Groove Ball Bearing 20x47x14mm
FAG
SKU: 6204-2RSR-FAG

FAG 62042RSR Rubber Sealed Deep Groove Ball Bearing 20x47x14mm

$14.63 ex VAT
$14.63
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 20mm
D = 47mm
B = 14mm
Dynamic load C = 13.5 kN
Static load Co = 6.55 kN
Fatigue load limit Pu = 0.28 kN
Reference speed = 32000 rpm
Limiting speed = 10000 rpm
Mass = 0.11 kg
d2 = 26.3mm
D2 = 40.6mm
r1r2 min = 1mm
da min = 25.6
