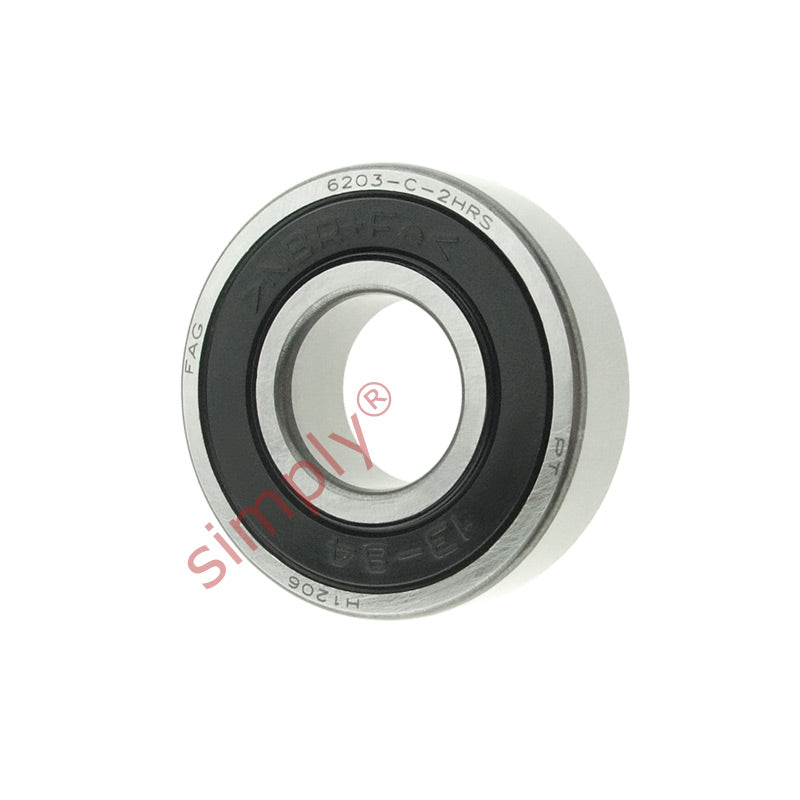

FAG 62032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
FAG
FAG 62032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
FAG

SKU: 6203-2RSR-FAG

FAG 62032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x12mm

$12.43 ex VAT
$12.43
ex VAT
Equivalent to: 6203NSE 6203DU 6203RS 6203RSH 6203P 6203RSR 6203LU 62032NSE 6203DDU 62032RS 62032RS1 62032RSH 6203PP 6203LLU
In stock

Quantity Price Breaks

10+ $11.06
19+ $10.44
29+ $10.32
39+ $10.19
49+ $10.07
74+ $9.94
99+ $9.32
199+ $9.20
249+ $9.07
499+ $8.95
999+ $8.70
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 62032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
FAG
SKU: 6203-2RSR-FAG

FAG 62032RSR Rubber Sealed Deep Groove Ball Bearing 17x40x12mm

$12.43 ex VAT
$12.43
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 17mm
D = 40mm
B = 12mm
Dynamic load C = 9.95 kN
Static load Co = 4.75 kN
Fatigue load limit Pu = 0.2 kN
Reference speed = 38000 rpm
Limiting speed = 12000 rpm
Mass = 0.065 kg
d2 = 22.2mm
D2 = 35mm
r1r2 min = 0.6mm
da min = 21.2
