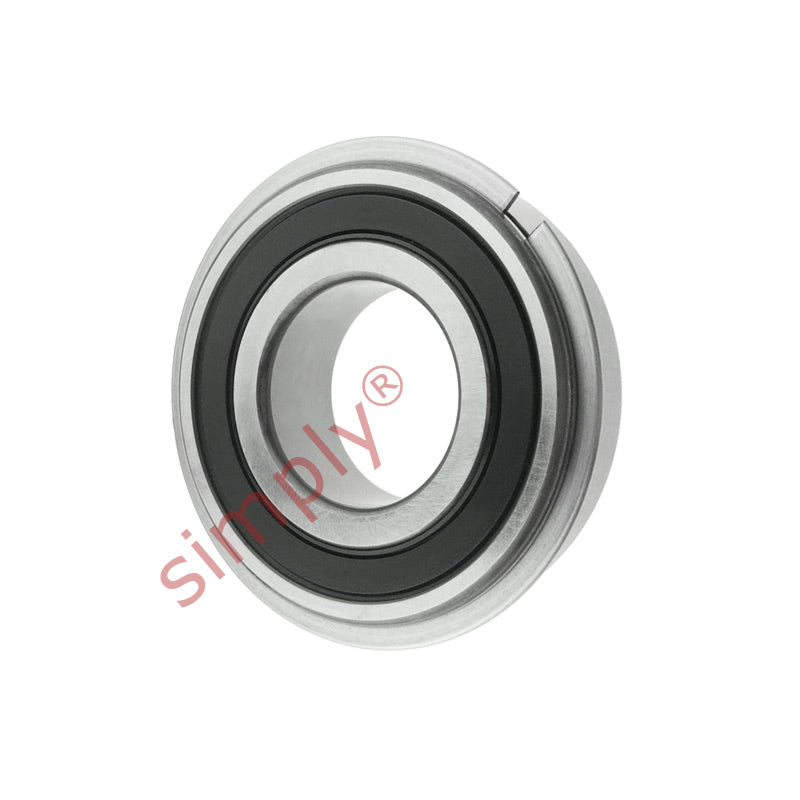

Major Branded 62012RSNR Rubber Sealed Snap Ring Deep Groove Ball Bearing 12x32x10mm

SKU: 6201-2RSHNR-MB

Major Branded 62012RSNR Rubber Sealed Snap Ring Deep Groove Ball Bearing 12x32x10mm

$36.87 ex VAT
$36.87
ex VAT
Equivalent to: 6201-2NSE9NRCM 62012RSHNRGJN
In stock

Quantity Price Breaks

10+ $32.81
19+ $30.97
29+ $30.60
39+ $30.23
49+ $29.86
74+ $29.50
99+ $27.65
199+ $27.28
249+ $26.92
499+ $26.55
999+ $25.81
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 62012RSNR Rubber Sealed Snap Ring Deep Groove Ball Bearing 12x32x10mm
SKU: 6201-2RSHNR-MB

Major Branded 62012RSNR Rubber Sealed Snap Ring Deep Groove Ball Bearing 12x32x10mm

$36.87 ex VAT
$36.87
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life, snap ring location in housings, open and metal shielded options available

Technical

d = 12mm
D = 32mm
B = 10mm
Dynamic load C = 7.28 kN
Static load Co = 3.1 kN
Fatigue load limit Pu = 0.132 kN
Reference speed = 50000 rpm
Limiting speed = 15000 rpm
Mass = 0.037 kg
d1 = 18.5mm
D2 = 27.4mm
r1r2 min = 0.6mm
da min = 16.2
