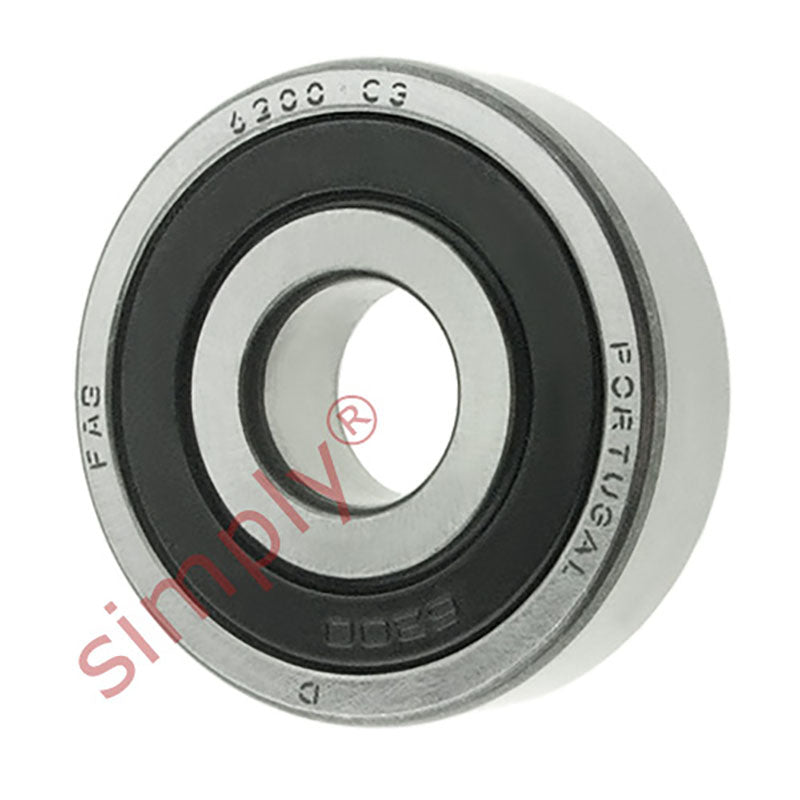

FAG 62002RSRC3 Rubber Sealed Deep Groove Ball Bearing 10x30x9mm
FAG
FAG 62002RSRC3 Rubber Sealed Deep Groove Ball Bearing 10x30x9mm
FAG

SKU: 6200-2RSR/C3-FAG

FAG 62002RSRC3 Rubber Sealed Deep Groove Ball Bearing 10x30x9mm

$9.26 ex VAT
$9.26
ex VAT
Equivalent to: 6200NSEC3 6200DUC3 6200RSC3 6200RSHC3 6200PC3 6200RSRC3 6200LUC3 62002NSEC3 6200DDUC3 62002RSC3 62002RS1C3 62002RSHC3 6200PPC3 6200LLU
In stock

Quantity Price Breaks

10+ $8.24
19+ $7.78
29+ $7.69
39+ $7.59
49+ $7.50
74+ $7.41
99+ $6.95
199+ $6.85
249+ $6.76
499+ $6.67
999+ $6.48
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 62002RSRC3 Rubber Sealed Deep Groove Ball Bearing 10x30x9mm
FAG
SKU: 6200-2RSR/C3-FAG

FAG 62002RSRC3 Rubber Sealed Deep Groove Ball Bearing 10x30x9mm

$9.26 ex VAT
$9.26
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 10mm
D = 30mm
B = 9mm
Dynamic load C = 5.4 kN
Static load Co = 2.36 kN
Fatigue load limit Pu = 0.1 kN
Reference speed = 56000 rpm
Limiting speed = 17000 rpm
Mass = 0.032 kg
d1 = 17mm
D2 = 24.8mm
r1r2 min = 0.6mm
da min = 14.2
