SKU: 61976-MA-FAG

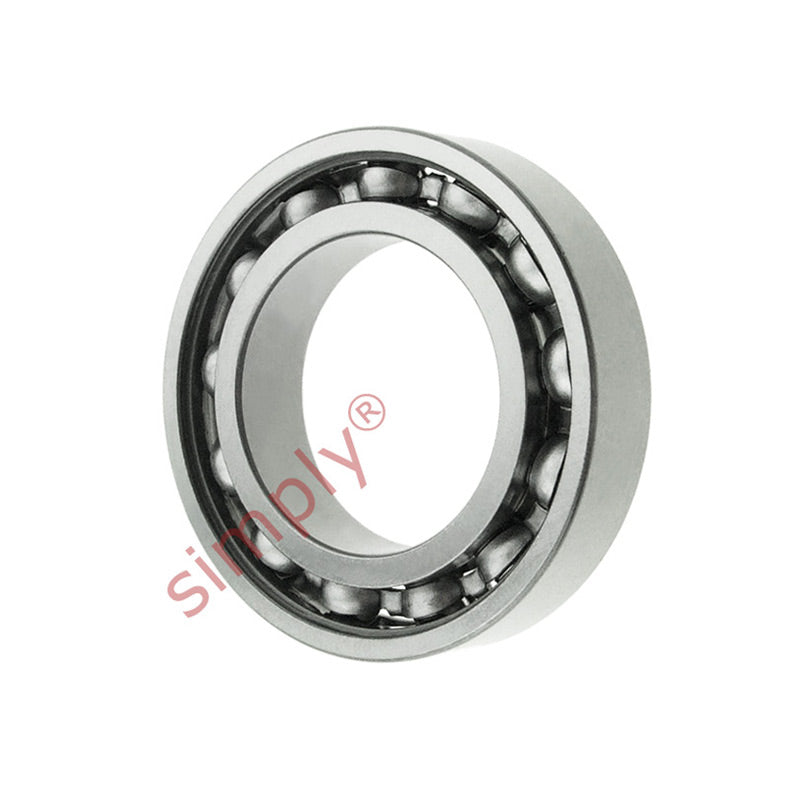

FAG 61976MA Open Thin Section Deep Groove Ball Bearing 380x520x65mm
FAG 61976MA Open Thin Section Deep Groove Ball Bearing 380x520x65mm
Regular price
$12,319.15
ex VAT
Regular price
Sale price
$12,319.15
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 380mm
- Outside Diameter:
- 520mm
- Width:
- 65mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 380mm |
|---|---|
| D | 520mm |
| B | 65mm |
| Dynamic load C | 338 kN |
| Static load Co | 540 kN |
| Fatigue load limit Pu | 10.8 kN |
| Reference speed | 2400 rpm |
| Limiting speed | 1900 rpm |
| Mass | 40 kg |
| d1 | 425mm |
| D1 | 475mm |
| D2 | 4mm |
| r1r2 min | 395mm |
| da min | 505mm |
| Da max | 3mm |
| ra max | 0.02mm |
| Calc factor Kr | 17 |
| Calc factor | N/A |
