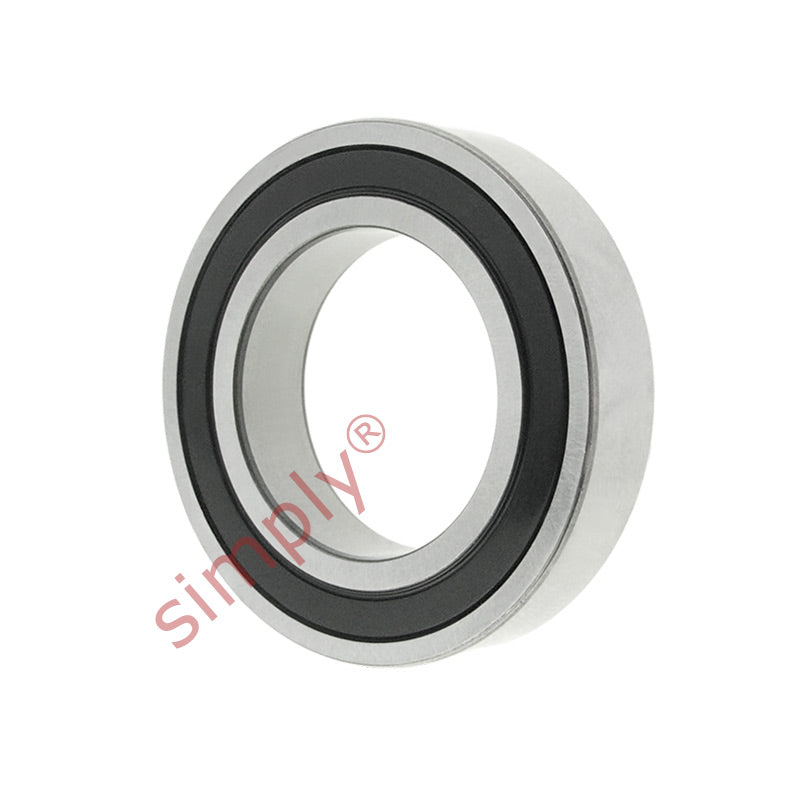

Major Branded 619042RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 20x37x9mm

SKU: 61904-2RSR/C3-MB

Major Branded 619042RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 20x37x9mm

$31.25 ex VAT
$31.25
ex VAT
Equivalent to: 61904NSEC3 61904DUC3 61904RSC3 61904RSHC3 61904PC3 61904RSRC3 61904LUC3 6904NSEC3 6904DUC3 6904RSC3 6904RSHC3 6904PC3 6904RSRC3 6904LUC3 619042NSEC3 61904DDUC3 619042RSC3 619042RS1C3 619042RSHC3 61904PPC3 61904LLU 69042NSEC3 6904DDUC3 69042RSC3 69042RS1C3 69042RSHC3 6904PPC3 69042RSRC3 6904LLUC3
In stock

Quantity Price Breaks

10+ $27.81
19+ $26.25
29+ $25.94
39+ $25.63
49+ $25.31
74+ $25.00
99+ $23.44
199+ $23.13
249+ $22.81
499+ $22.50
999+ $21.88
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 619042RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 20x37x9mm
SKU: 61904-2RSR/C3-MB

Major Branded 619042RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 20x37x9mm

$31.25 ex VAT
$31.25
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 20mm
D = 37mm
B = 9mm
Dynamic load C = 6.37 kN
Static load Co = 3.65 kN
Fatigue load limit Pu = 0.156 kN
Reference speed = 43000 rpm
Limiting speed = 12000 rpm
Mass = 0.038 kg
d2 = 24.2mm
D2 = 32.8mm
r1r2 min = 0.3mm
da min = 22
