SKU: 61856-FAG

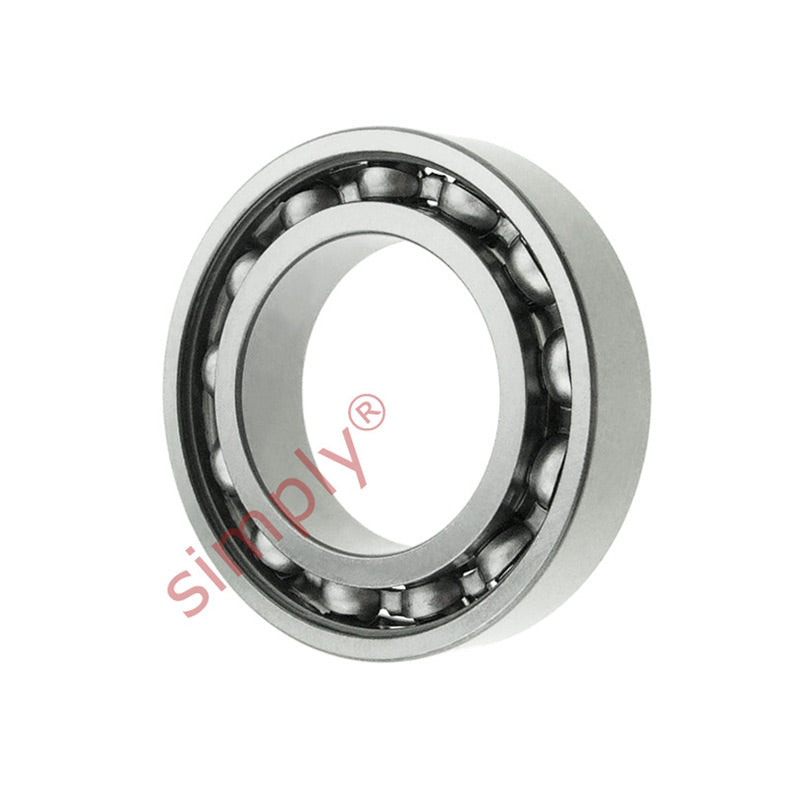

FAG 61856 Open Thin Section Deep Groove Ball Bearing 280x350x33mm
FAG 61856 Open Thin Section Deep Groove Ball Bearing 280x350x33mm
Regular price
$2,274.65
ex VAT
Regular price
Sale price
$2,274.65
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 280mm
- Outside Diameter:
- 350mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 280mm |
|---|---|
| D | 350mm |
| B | 33mm |
| Dynamic load C | 138 kN |
| Static load Co | 200 kN |
| Fatigue load limit Pu | 4.75 kN |
| Reference speed | 3400 rpm |
| Limiting speed | 2200 rpm |
| Mass | 7.4 kg |
| d1 | 302mm |
| D1 | 327mm |
| D2 | 2mm |
| r1r2 min | 289mm |
| da min | 341mm |
| Da max | 2mm |
| ra max | 0.015mm |
| Calc factor Kr | 17 |
| Calc factor | N/A |
