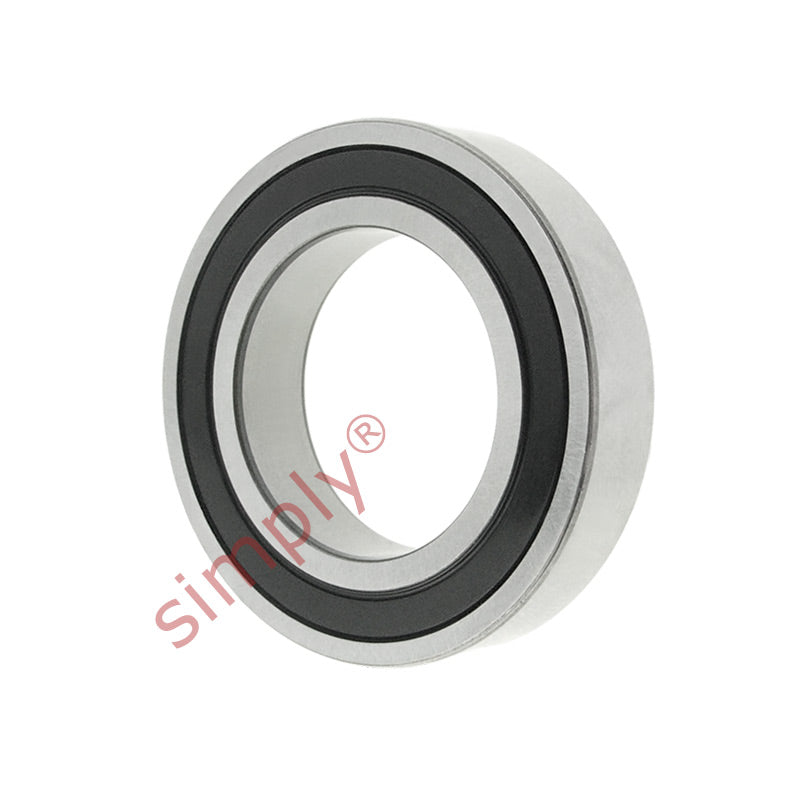

Major Branded 618202RSR Rubber Sealed Thin Deep Groove Ball Bearing 100x125x13mm

SKU: 61820-2RSR-MB

Major Branded 618202RSR Rubber Sealed Thin Deep Groove Ball Bearing 100x125x13mm

$326.87 ex VAT
$326.87
ex VAT
Equivalent to: 61820NSE 61820DU 61820RS 61820RSH 61820P 61820RSR 61820LU 6820NSE 6820DU 6820RS 6820RSH 6820P 6820RSR 6820LU 618202NSE 61820DDU 618202RS 618202RS1 618202RSH 61820PP 61820LLU 68202NSE 6820DDU 68202RS 68202RS1 68202RSH 6820PP 68202RSR 6820LLU
In stock

Quantity Price Breaks

10+ $290.91
19+ $274.57
29+ $271.30
39+ $268.03
49+ $264.76
74+ $261.50
99+ $245.15
199+ $241.88
249+ $238.62
499+ $235.35
999+ $228.81
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 618202RSR Rubber Sealed Thin Deep Groove Ball Bearing 100x125x13mm
SKU: 61820-2RSR-MB

Major Branded 618202RSR Rubber Sealed Thin Deep Groove Ball Bearing 100x125x13mm

$326.87 ex VAT
$326.87
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 100mm
D = 125mm
B = 13mm
Dynamic load C = 19.9 kN
Static load Co = 24 kN
Fatigue load limit Pu = 0.95 kN
Reference speed = 10000 rpm
Limiting speed = 3000 rpm
Mass = 0.31 kg
d1 = 108mm
D2 = 119mm
r1r2 min = 1mm
da min = 105
