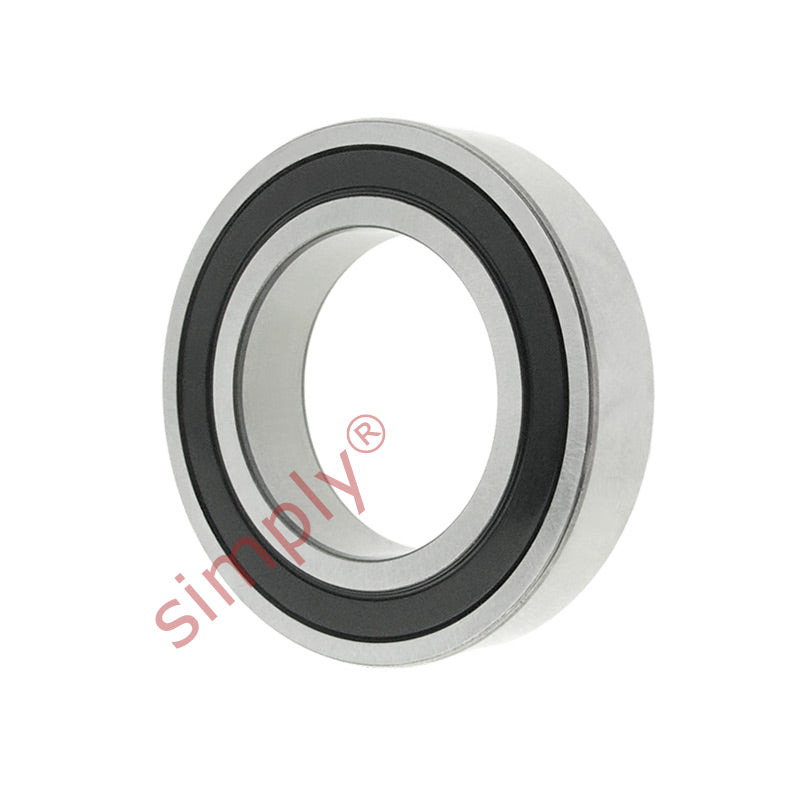

Major Branded 618202RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 100x125x13mm

SKU: 61820-2RSR/C3-MB

Major Branded 618202RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 100x125x13mm

$446.47 ex VAT
$446.47
ex VAT
Equivalent to: 61820NSEC3 61820DUC3 61820RSC3 61820RSHC3 61820PC3 61820RSRC3 61820LUC3 6820NSEC3 6820DUC3 6820RSC3 6820RSHC3 6820PC3 6820RSRC3 6820LUC3 618202NSEC3 61820DDUC3 618202RSC3 618202RS1C3 618202RSHC3 61820PPC3 61820LLU 68202NSEC3 6820DDUC3 68202RSC3 68202RS1C3 68202RSHC3 6820PPC3 68202RSRC3 6820LLUC3
In stock

Quantity Price Breaks

10+ $397.36
19+ $375.03
29+ $370.57
39+ $366.11
49+ $361.64
74+ $357.18
99+ $334.85
199+ $330.39
249+ $325.92
499+ $321.46
999+ $312.53
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 618202RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 100x125x13mm
SKU: 61820-2RSR/C3-MB

Major Branded 618202RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 100x125x13mm

$446.47 ex VAT
$446.47
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 100mm
D = 125mm
B = 13mm
Dynamic load C = 19.9 kN
Static load Co = 24 kN
Fatigue load limit Pu = 0.95 kN
Reference speed = 10000 rpm
Limiting speed = 3000 rpm
Mass = 0.31 kg
d1 = 108mm
D2 = 119mm
r1r2 min = 1mm
da min = 105
