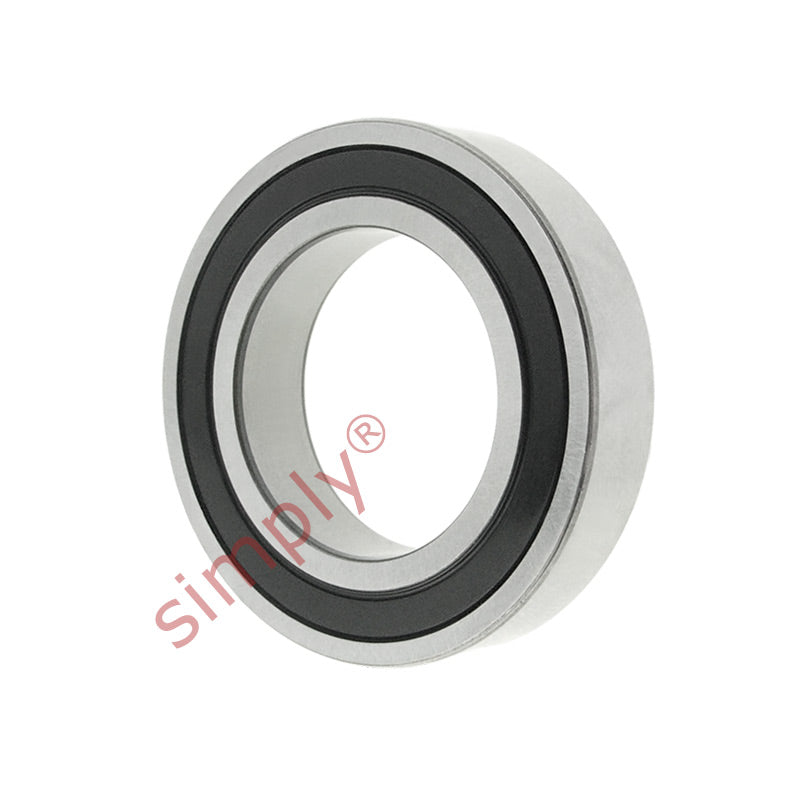

Major Branded 618192RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 95x120x13mm

SKU: 61819-2RSR/C3-MB

Major Branded 618192RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 95x120x13mm

$302.73 ex VAT
$302.73
ex VAT
Equivalent to: 61819NSEC3 61819DUC3 61819RSC3 61819RSHC3 61819PC3 61819RSRC3 61819LUC3 6819NSEC3 6819DUC3 6819RSC3 6819RSHC3 6819PC3 6819RSRC3 6819LUC3 618192NSEC3 61819DDUC3 618192RSC3 618192RS1C3 618192RSHC3 61819PPC3 61819LLU 68192NSEC3 6819DDUC3 68192RSC3 68192RS1C3 68192RSHC3 6819PPC3 68192RSRC3 6819LLUC3
In stock

Quantity Price Breaks

10+ $269.43
19+ $254.29
29+ $251.27
39+ $248.24
49+ $245.21
74+ $242.18
99+ $227.05
199+ $224.02
249+ $220.99
499+ $217.97
999+ $211.91
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 618192RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 95x120x13mm
SKU: 61819-2RSR/C3-MB

Major Branded 618192RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 95x120x13mm

$302.73 ex VAT
$302.73
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 95mm
D = 120mm
B = 13mm
Dynamic load C = 19.9 kN
Static load Co = 22.8 kN
Fatigue load limit Pu = 0.93 kN
Reference speed = 11000 rpm
Limiting speed = 3000 rpm
Mass = 0.3 kg
d1 = 103mm
D2 = 114mm
r1r2 min = 1mm
da min = 99.6
