SKU: 61814-FAG

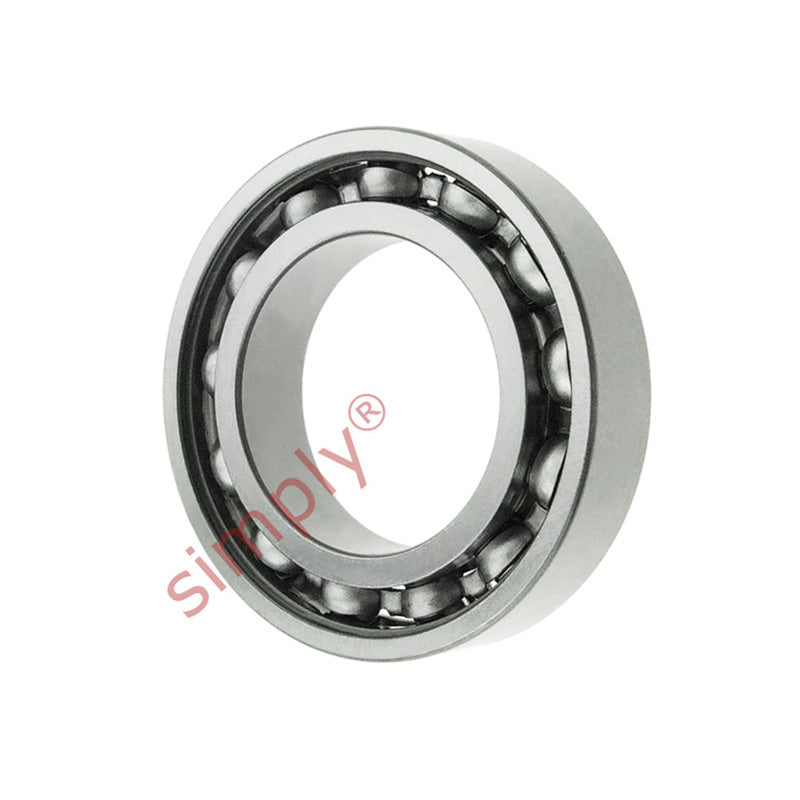

FAG 61814 Open Thin Section Deep Groove Ball Bearing 70x90x10mm
FAG 61814 Open Thin Section Deep Groove Ball Bearing 70x90x10mm
Regular price
$166.89
ex VAT
Regular price
Sale price
$166.89
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 90mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 90mm |
| B | 10mm |
| Dynamic load C | 12.4 kN |
| Static load Co | 13.2 kN |
| Fatigue load limit Pu | 0.56 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 9000 rpm |
| Mass | 0.14 kg |
| d1 | 76.6mm |
| D1 | 83.4mm |
| r1r2 min | 0.6mm |
| da min | 73.2mm |
| Da max | 86.8mm |
| ra max | 0.6mm |
| Calc factor Kr | 0.015 |
| Calc factor | 17 |
