SKU: 61807-2RSR/C3-MB

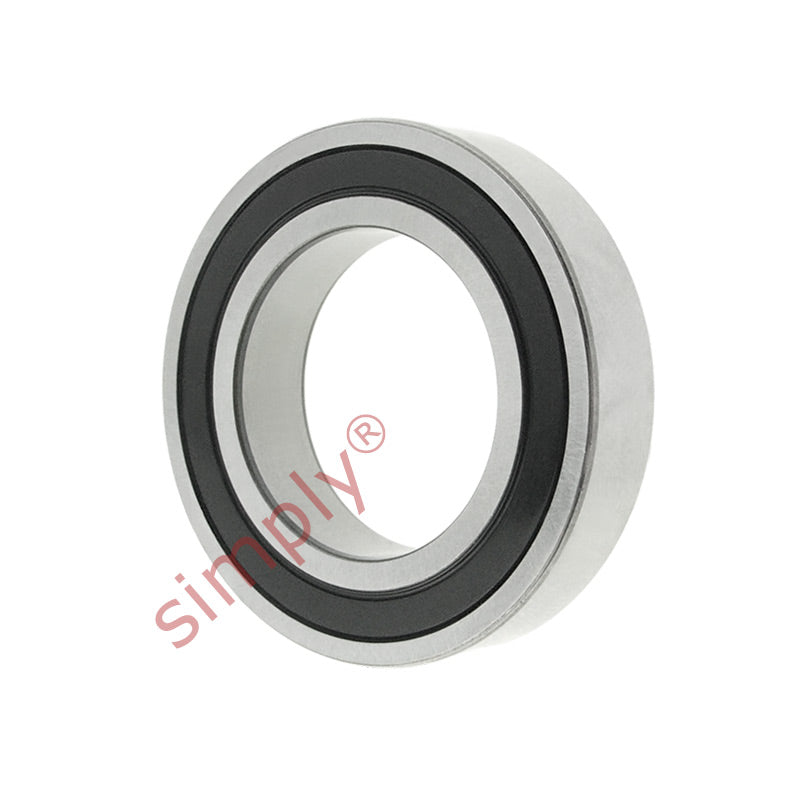

Major Branded 618072RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 35x47x7mm
- Regular price
- $73.83 ex VAT
- Sale price
- $73.83
- Regular price
-
In stock
Quantity Price Breaks
10+
$65.71
19+
$62.02
29+
$61.28
39+
$60.54
49+
$59.80
74+
$59.06
99+
$55.37
199+
$54.63
249+
$53.90
499+
$53.16
999+
$51.68
SKU:
61807-2RSR/C3-MB
Major Branded 618072RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 35x47x7mm
- Regular price
- $73.83 ex VAT
- Sale price
- $73.83
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Technical
| d | = | 35mm |
| D | = | 47mm |
| B | = | 7mm |
| Dynamic load C | = | 4.75 kN |
| Static load Co | = | 3.2 kN |
| Fatigue load limit Pu | = | 0.166 kN |
| Reference speed | = | 28000 rpm |
| Limiting speed | = | 8000 rpm |
| Mass | = | 0.03 kg |
| d2 | = | 37.6mm |
| D2 | = | 44.4mm |
| r1r2 min | = | 0.3mm |
| da min | = | 37 |
