SKU: 609-2RSR/C3-MB

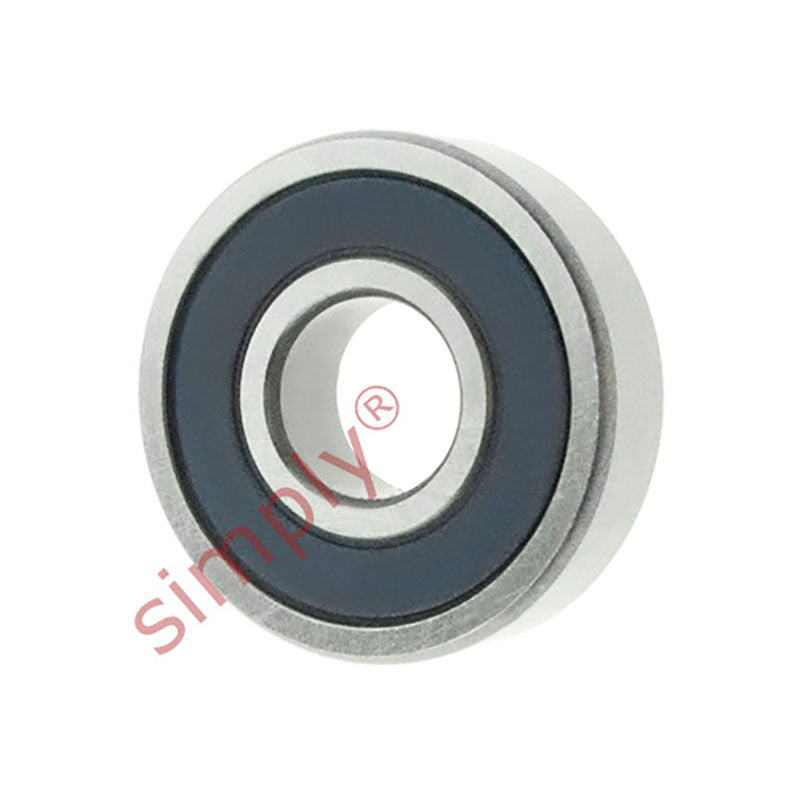

Major Branded 6092RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x24x7mm
- Regular price
- $8.62 ex VAT
- Sale price
- $8.62
- Regular price
-
In stock
Quantity Price Breaks
10+
$7.67
19+
$7.24
29+
$7.15
39+
$7.07
49+
$6.98
74+
$6.90
99+
$6.47
199+
$6.38
249+
$6.29
499+
$6.21
999+
$6.03
SKU:
609-2RSR/C3-MB
Major Branded 6092RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x24x7mm
- Regular price
- $8.62 ex VAT
- Sale price
- $8.62
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Technical
| d | = | 9mm |
| D | = | 24mm |
| B | = | 7mm |
| Dynamic load C | = | 3.9 kN |
| Static load Co | = | 1.66 kN |
| Fatigue load limit Pu | = | 0.071 kN |
| Reference speed | = | 70000 rpm |
| Limiting speed | = | 19000 rpm |
| Mass | = | 0.014 kg |
| d2 | = | 12.8mm |
| D2 | = | 21.2mm |
| r1r2 min | = | 0.3mm |
| da min | = | 11 |
