SKU: 6014-2Z-HT-330
6014ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x110x20mm Max 68rpm
- Regular price
- $77.93 ex VAT
- Sale price
- $77.93
- Regular price
-
Not in stock
Quantity Price Breaks
3
$69.36
5
$65.46
10
$64.68
15
$63.90
20
$63.12
30
$62.34
40
$58.45
50
$57.67
60
$56.89
75
$56.11
100
$54.55
SKU:
6014-2Z-HT-330
6014ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 70x110x20mm Max 68rpm
- Regular price
- $77.93 ex VAT
- Sale price
- $77.93
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical

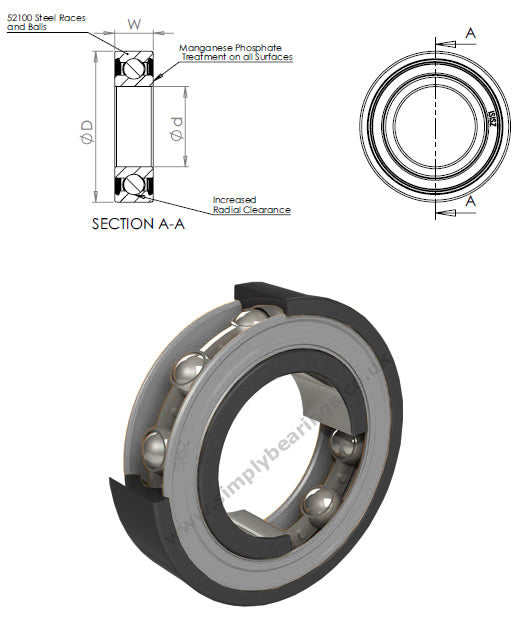

| Inside diameter d | = | 70mm |
| Outside diameter D | = | 110mm |
| Width W | = | 20mm |
| Static load max | = | 18.21 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 68 rpm |
| Weight | = | 600 g |
