SKU: 6012-2RS/C3-EMQ-CDX

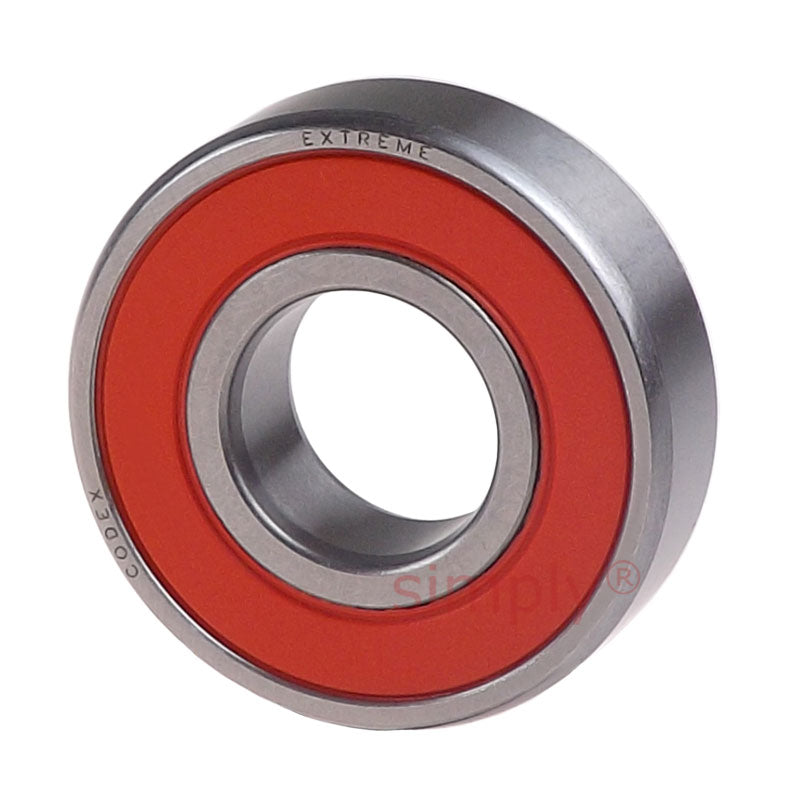

Codex 60122RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 60x95x18mm
- Regular price
- $46.82 ex VAT
- Sale price
- $46.82
- Regular price
-
ex VAT
Quantity Price Breaks
Description
|
Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. For use in electrical motors, tools and household appliances. |
Technical
| d | = | 60mm |
| D | = | 95mm |
| B | = | 18mm |
| Dynamic load C | = | 30.7 kN |
| Static load Co | = | 23.2 kN |
| Fatigue load limit Pu | = | 0.98 |
| Reference speed | = | 15000 rpm |
| Limiting speed | = | 4300 rpm |
| Weight | = | 0.42 kg |
| d1 | = | 71.3mm |
| D2 | = | 86.5mm |
| r1r2 | = | 1.1mm |
| da min | = | 66mm |
| Da max | = | 89mm |
| ra max | = | 1mm |
| Calc factor kr | = | 0.025 |
| Calc factor Cor f0 | = | 16 |
