SKU: 6011-2NSE-NACHI

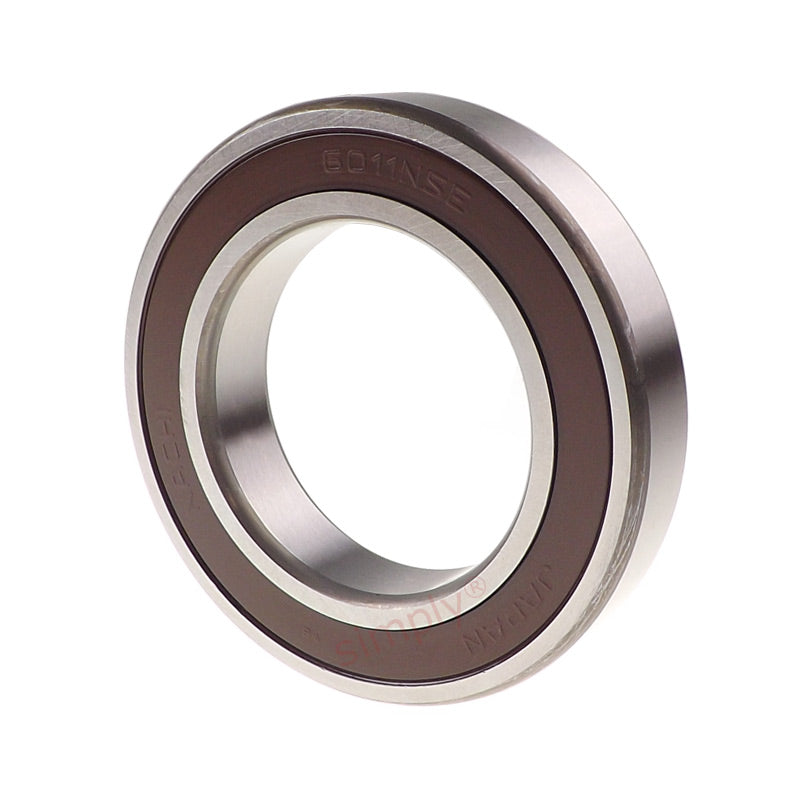

NACHI 60112NSE Contact Rubber Sealed Deep Groove Ball Bearing 55x90x18mm
- Regular price
- $47.97 ex VAT
- Sale price
- $47.97
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
5
$42.69
9
$40.29
19
$39.82
29
$39.34
49
$38.86
74
$38.38
99
$35.98
199
$35.50
249
$35.02
499
$34.54
999
$33.58
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Technical
| Inside Diameter d | = | 55mm |
| Outside Diameter D | = | 90mm |
| Width B | = | 18mm |
| Min radius r | = | 1.1mm |
| Dynamic load | = | 28300 kN |
| Static load | = | 21300 kN |
| Max speed | = | 7700 rpm |
| da min | = | 61mm |
| Da max | = | 84mm |
| ra max | = | 1mm |
| Weight | = | 0.384 kg |
