SKU: 60092ZNR-MB

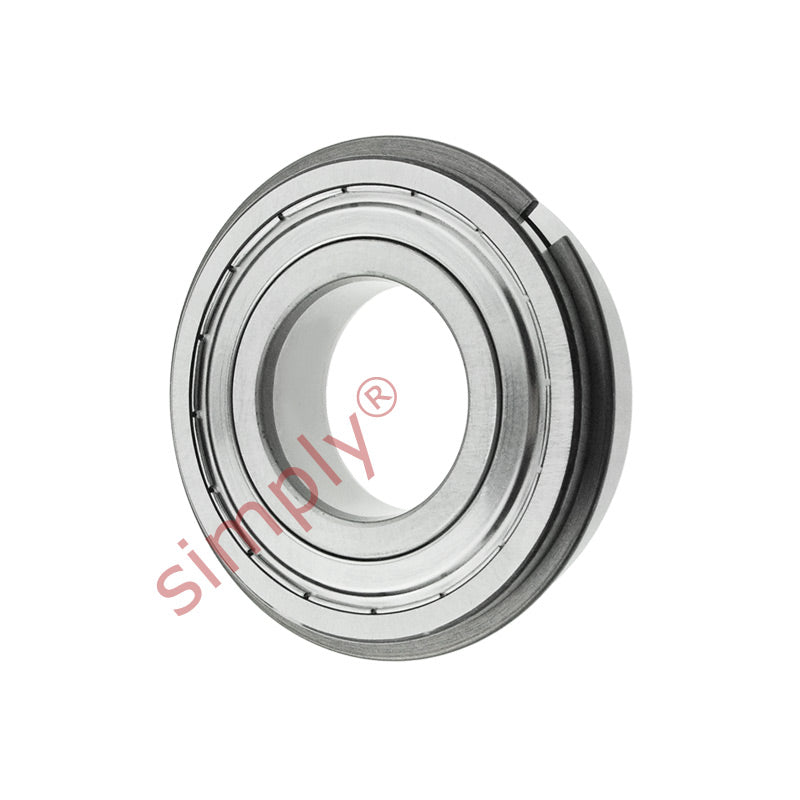

Major Branded 60092ZNR Metal Shielded Snap Ring Deep Groove Ball Bearing 45x75x16mm
- Regular price
- $16.18 ex VAT
- Sale price
- $16.18
- Regular price
-
In stock
Quantity Price Breaks
10+
$14.40
19+
$13.59
29+
$13.43
39+
$13.27
49+
$13.11
74+
$12.94
99+
$12.14
199+
$11.97
249+
$11.81
499+
$11.65
999+
$11.33
SKU:
60092ZNR-MB
Major Branded 60092ZNR Metal Shielded Snap Ring Deep Groove Ball Bearing 45x75x16mm
- Regular price
- $16.18 ex VAT
- Sale price
- $16.18
- Regular price
-
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Technical
| d | = | 45mm |
| D | = | 75mm |
| B | = | 16mm |
| Dynamic load C | = | 22.1 kN |
| Static load Co | = | 14.6 kN |
| Fatigue load limit Pu | = | 0.64 kN |
| Reference speed | = | 20000 rpm |
| Limiting speed | = | 10000 rpm |
| Mass | = | 0.25 kg |
| d1 | = | 54.8mm |
| D2 | = | 67.8mm |
| r1r2 min | = | 1mm |
| da min | = | 50.8 |
