SKU: 6008-ZZE-NACHI

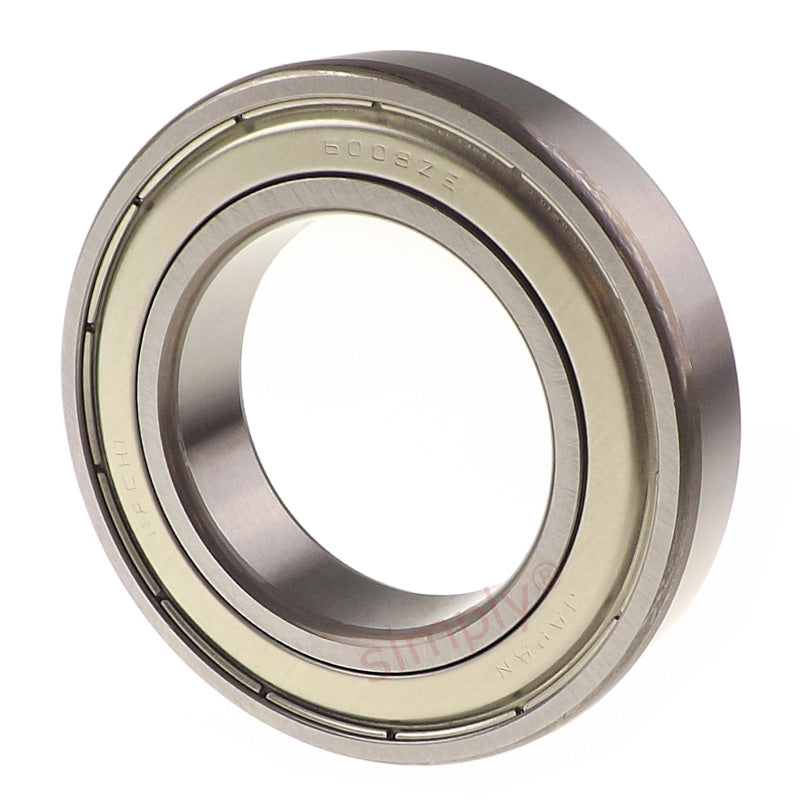

NACHI 6008ZZE Metal Shielded Deep Groove Ball Bearing 40x68x15mm
- Regular price
- $22.53 ex VAT
- Sale price
- $22.53
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
5
$20.05
9
$18.93
19
$18.70
29
$18.47
49
$18.25
74
$18.02
99
$16.90
199
$16.67
249
$16.45
499
$16.22
999
$15.77
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Technical
| Inside Diameter d | = | 40mm |
| Outside Diameter D | = | 68mm |
| Width B | = | 15mm |
| Min radius r | = | 1mm |
| Dynamic load | = | 16800 kN |
| Static load | = | 11500 kN |
| Max speed | = | 10000 rpm |
| da min | = | 45mm |
| Da max | = | 63mm |
| ra max | = | 1mm |
| Weight | = | 0.194 kg |
Downloads
Reviews
