SKU: 6006/C3-FAG

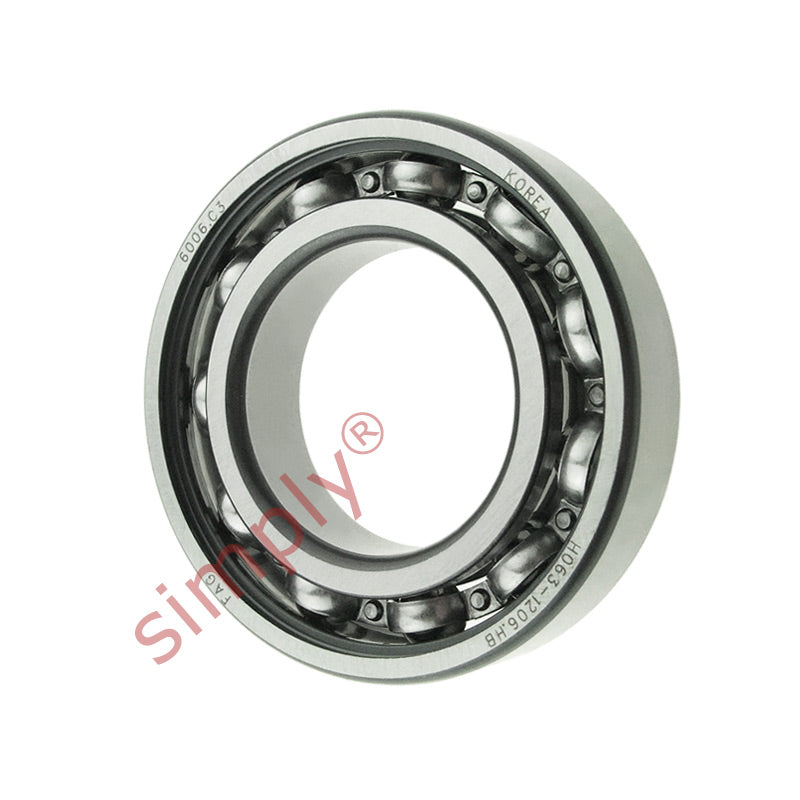

FAG 6006C3 Open Deep Groove Ball Bearing 30x55x13mm
- Regular price
- $13.30 ex VAT
- Sale price
- $13.30
- Regular price
-
In stock
Quantity Price Breaks
10+
$11.84
19+
$11.17
29+
$11.04
39+
$10.91
49+
$10.77
74+
$10.64
99+
$9.98
199+
$9.84
249+
$9.71
499+
$9.58
999+
$9.31
SKU:
6006/C3-FAG
FAG 6006C3 Open Deep Groove Ball Bearing 30x55x13mm
- Regular price
- $13.30 ex VAT
- Sale price
- $13.30
- Regular price
-
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 30mm |
| D | = | 55mm |
| B | = | 13mm |
| Dynamic load C | = | 13.8 kN |
| Static load Co | = | 8.3 kN |
| Fatigue load limit Pu | = | 0.355 kN |
| Reference speed | = | 28000 rpm |
| Limiting speed | = | 17000 rpm |
| Mass | = | 0.12 kg |
| d1 | = | 38.2mm |
| D1 | = | 46.8mm |
| D2 | = | 49mm |
| r1r2 min | = | 1mm |
| da min | = | 34.6mm |
| Da max | = | 50.4mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.025 |
| Calc factor | = | 15 |
