SKU: 6003-HT-330

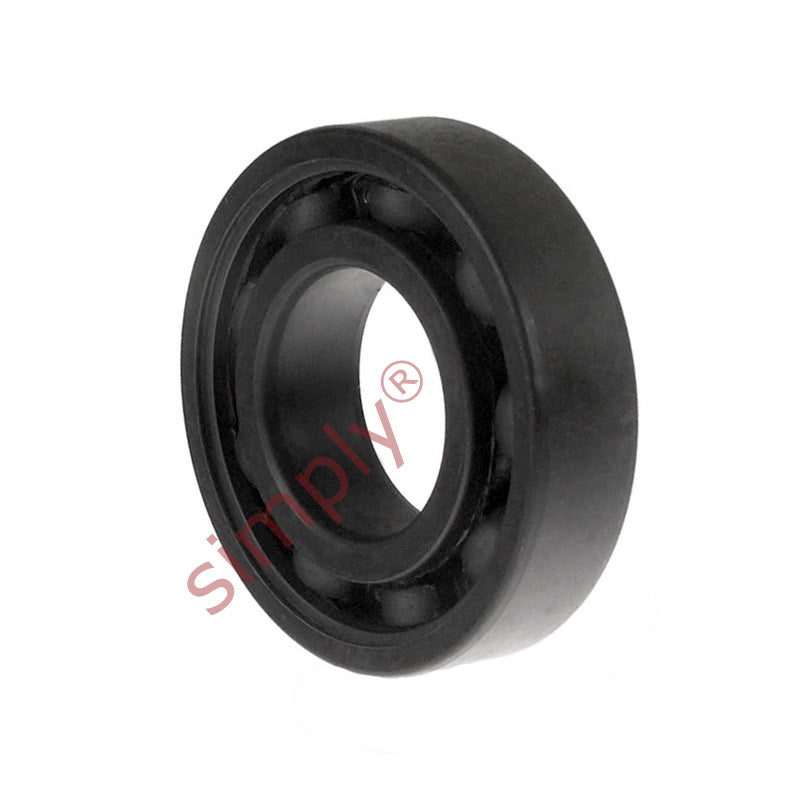

6003HT330 High Temp 330C Open Deep Groove Ball Bearing 17x35x10mm Max 250rpm
- Regular price
- $24.13 ex VAT
- Sale price
- $24.13
- Regular price
-
Not in stock
Quantity Price Breaks
3
$21.48
5
$20.27
10
$20.03
15
$19.79
20
$19.55
30
$19.30
40
$18.10
50
$17.86
60
$17.61
75
$17.37
100
$16.89
SKU:
6003-HT-330
6003HT330 High Temp 330C Open Deep Groove Ball Bearing 17x35x10mm Max 250rpm
- Regular price
- $24.13 ex VAT
- Sale price
- $24.13
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Technical
| Inside diameter d | = | 17mm |
| Outside diameter D | = | 35mm |
| Width W | = | 10mm |
| Static load max | = | 1.88 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 250 rpm |
| Weight | = | 40 g |
