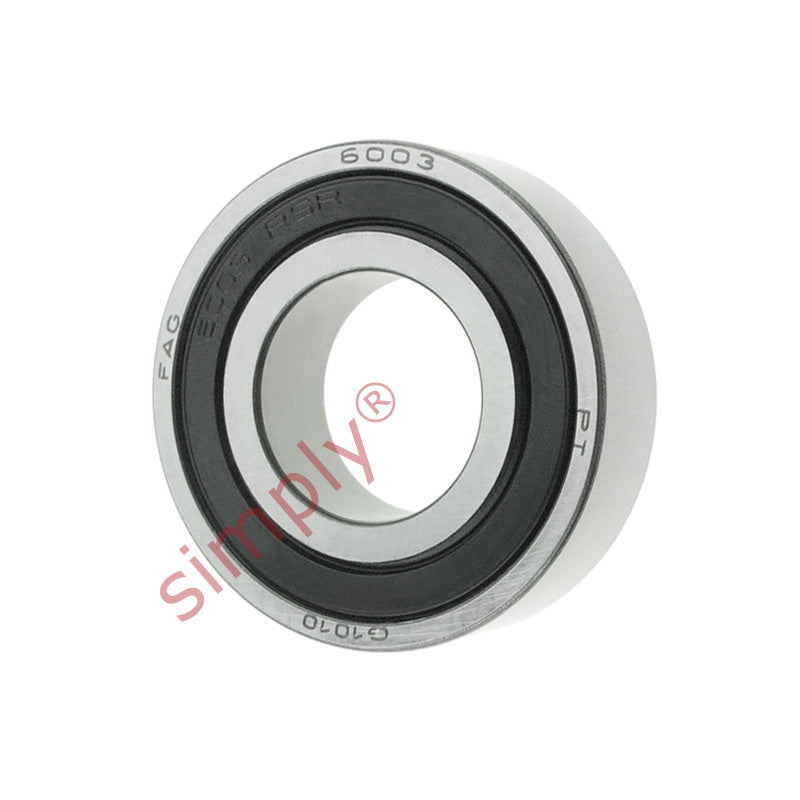

FAG 60032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
FAG
FAG 60032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
FAG

SKU: 6003-2RSR-FAG

FAG 60032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x10mm

$12.15 ex VAT
$12.15
ex VAT
Equivalent to: 6003NSE 6003DU 6003RS 6003RSH 6003P 6003RSR 6003LU 60032NSE 6003DDU 60032RS 60032RS1 60032RSH 6003PP 6003LLU
In stock

Quantity Price Breaks

10+ $10.81
19+ $10.21
29+ $10.08
39+ $9.96
49+ $9.84
74+ $9.72
99+ $9.11
199+ $8.99
249+ $8.87
499+ $8.75
999+ $8.51
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 60032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x10mm
FAG
SKU: 6003-2RSR-FAG

FAG 60032RSR Rubber Sealed Deep Groove Ball Bearing 17x35x10mm

$12.15 ex VAT
$12.15
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 17mm
D = 35mm
B = 10mm
Dynamic load C = 6.37 kN
Static load Co = 3.25 kN
Fatigue load limit Pu = 0.137 kN
Reference speed = 45000 rpm
Limiting speed = 13000 rpm
Mass = 0.039 kg
d2 = 20.7mm
D2 = 31.4mm
r1r2 min = 0.3mm
da min = 19
