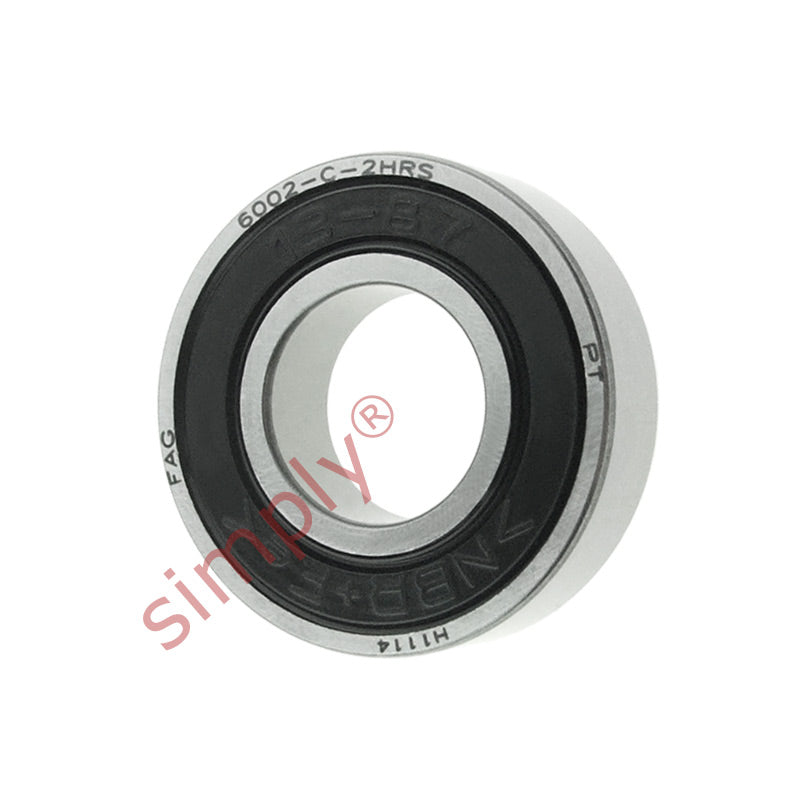

FAG 60022RSR Rubber Sealed Deep Groove Ball Bearing 15x32x9mm
FAG
FAG 60022RSR Rubber Sealed Deep Groove Ball Bearing 15x32x9mm
FAG

SKU: 6002-2RSR-FAG

FAG 60022RSR Rubber Sealed Deep Groove Ball Bearing 15x32x9mm

$11.58 ex VAT
$11.58
ex VAT
Equivalent to: 6002NSE 6002DU 6002RS 6002RSH 6002P 6002RSR 6002LU 60022NSE 6002DDU 60022RS 60022RS1 60022RSH 6002PP 6002LLU
In stock

Quantity Price Breaks

10+ $10.31
19+ $9.73
29+ $9.61
39+ $9.50
49+ $9.38
74+ $9.26
99+ $8.69
199+ $8.57
249+ $8.45
499+ $8.34
999+ $8.11
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
FAG 60022RSR Rubber Sealed Deep Groove Ball Bearing 15x32x9mm
FAG
SKU: 6002-2RSR-FAG

FAG 60022RSR Rubber Sealed Deep Groove Ball Bearing 15x32x9mm

$11.58 ex VAT
$11.58
ex VAT

Description

FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 15mm
D = 32mm
B = 9mm
Dynamic load C = 5.85 kN
Static load Co = 2.85 kN
Fatigue load limit Pu = 0.12 kN
Reference speed = 50000 rpm
Limiting speed = 14000 rpm
Mass = 0.03 kg
d2 = 18.7mm
D2 = 28.2mm
r1r2 min = 0.3mm
da min = 17
