SKU: 60-3-BB-NO58-RENOLD

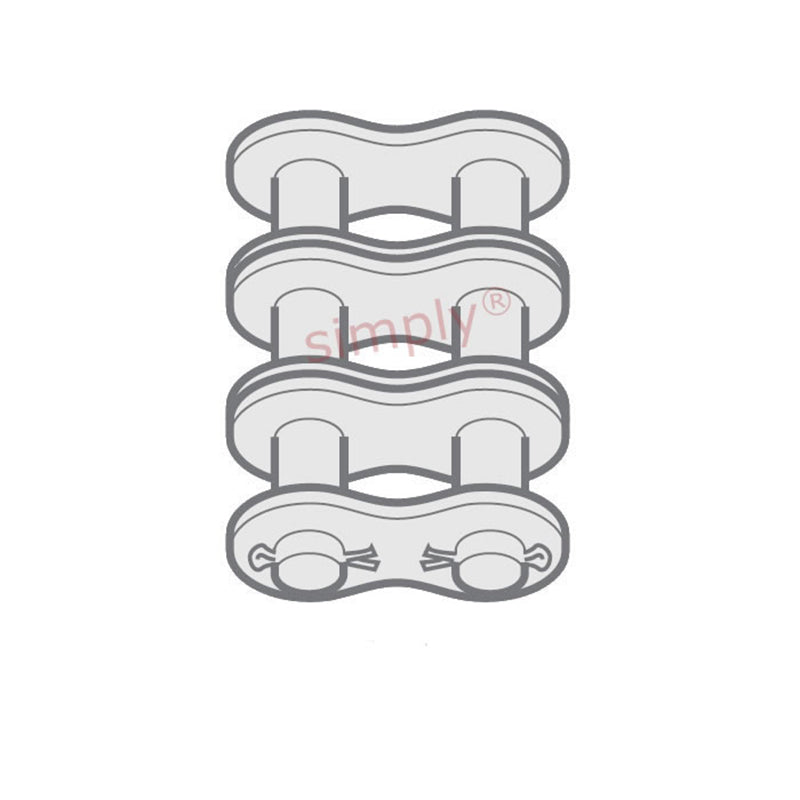

Renold Blue Box 60-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 3/4 inch Pitch
- Regular price
- $29.33 ex VAT
- Sale price
- $29.33
- Regular price
-
Not in stock
Quantity Price Breaks
2
$26.10
5
$24.64
10
$24.34
29
$24.05
49
$23.76
75
$23.46
100
$22.00
200
$21.70
250
$21.41
500
$21.12
1000
$20.53
SKU:
60-3-BB-NO58-RENOLD
Renold Blue Box 60-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 3/4 inch Pitch
- Regular price
- $29.33 ex VAT
- Sale price
- $29.33
- Regular price
-
Description
| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 70.9mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 22.78mm |
| ISO606 Tensile Strength min | = | 93900 N |
| Weight | = | 1.51kg/m |
