SKU: 60-1-SYN-NO12-RENOLD
Renold Synergy 60-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- $45.90 ex VAT
- Sale price
- $45.90
- Regular price
-
In stock
Quantity Price Breaks
2
$40.85
5
$38.56
10
$38.10
29
$37.64
49
$37.18
75
$36.72
100
$34.43
200
$33.97
250
$33.51
500
$33.05
1000
$32.13
SKU:
60-1-SYN-NO12-RENOLD
Renold Synergy 60-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- $45.90 ex VAT
- Sale price
- $45.90
- Regular price
-
Description

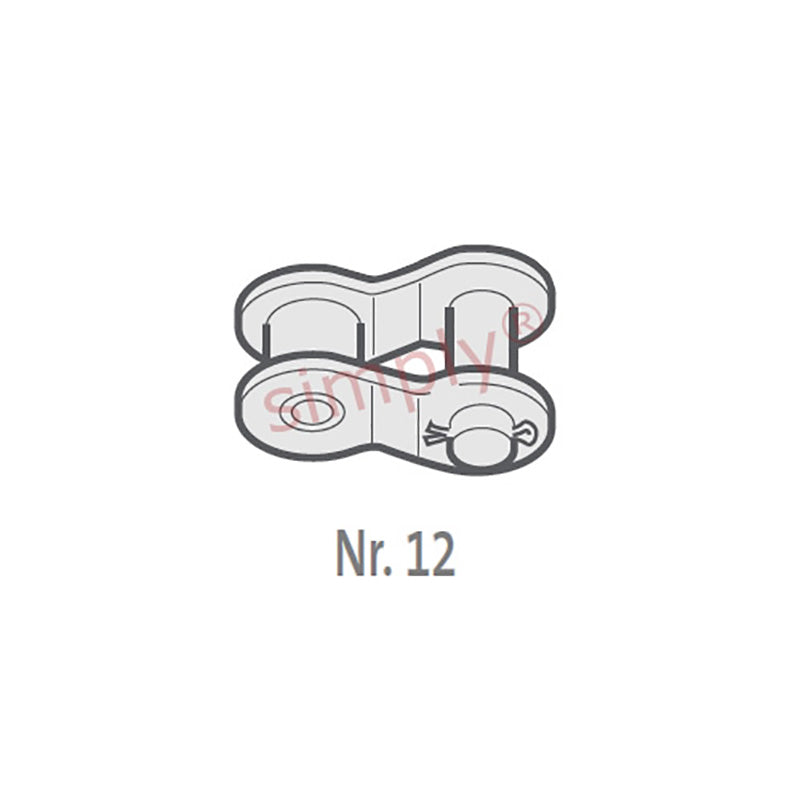

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H1) | = | 25.3mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| ISO606 Tensile Strength min | = | 31300 N |
| Weight | = | 1.5kg/m |
