SKU: 60-1-SYN-NO11-RENOLD
Renold Synergy 60-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 3/4 inch Pitch
- Regular price
- $27.71 ex VAT
- Sale price
- $27.71
- Regular price
-
In stock
Quantity Price Breaks
2
$24.66
5
$23.28
10
$23.00
29
$22.72
49
$22.45
75
$22.17
100
$20.78
200
$20.51
250
$20.23
500
$19.95
1000
$19.40
SKU:
60-1-SYN-NO11-RENOLD
Renold Synergy 60-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 3/4 inch Pitch
- Regular price
- $27.71 ex VAT
- Sale price
- $27.71
- Regular price
-
Description

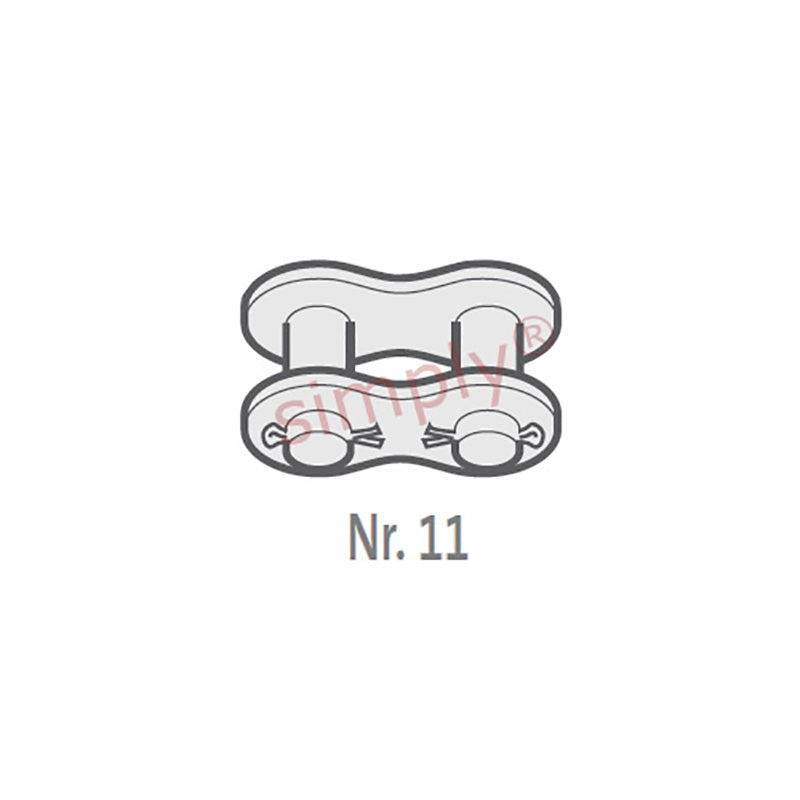

| Renold No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H1) | = | 25.3mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| ISO606 Tensile Strength min | = | 31300 N |
| Weight | = | 1.5kg/m |
