SKU: 53317+U317-EU
53317 Budget Single Thrust Ball Bearing with Spherical Housing Seat U317 85x150x58mm
- Regular price
- $444.65 ex VAT
- Sale price
- $444.65
- Regular price
-
Not in stock
Quantity Price Breaks
10
$395.74
19
$373.51
29
$369.06
39
$364.61
49
$360.17
74
$355.72
99
$333.49
199
$329.04
249
$324.59
499
$320.15
999
$311.26
SKU:
53317+U317-EU
53317 Budget Single Thrust Ball Bearing with Spherical Housing Seat U317 85x150x58mm
- Regular price
- $444.65 ex VAT
- Sale price
- $444.65
- Regular price
-
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |

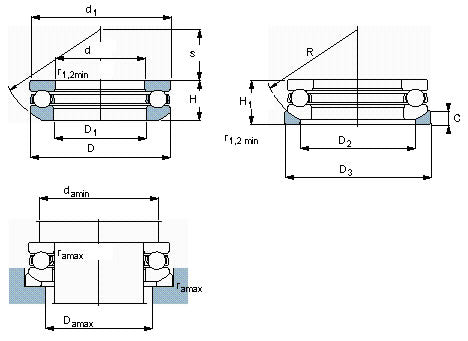

Technical
| d | = | 85mm |
| D | = | 150mm |
| H1 | = | 58mm |
| Dynamic load C | = | 190 kN |
| Static load Co | = | 465 kN |
| Fatigue load limit Pu | = | 16 kN |
| Minimum load factor A | = | 1.1 |
| Reference speed | = | 1600 rpm |
| Limiting Speed | = | 2200 rpm |
| Weight | = | 4.35 kg |
| Seating Washer | = | U317 |
| d1 | = | 150mm |
| D1 | = | 88mm |
| D2 | = | 115mm |
| D3 | = | 155mm |
| H | = | 53.1mm |
| C | = | 17.5mm |
| R | = | 112mm |
| s | = | 43mm |
| r1r2 min | = | 1.5mm |
| da max | = | 124mm |
| Da max | = | 115mm |
| ra max | = | 1.5mm |
