SKU: 5309-2RS-KSM

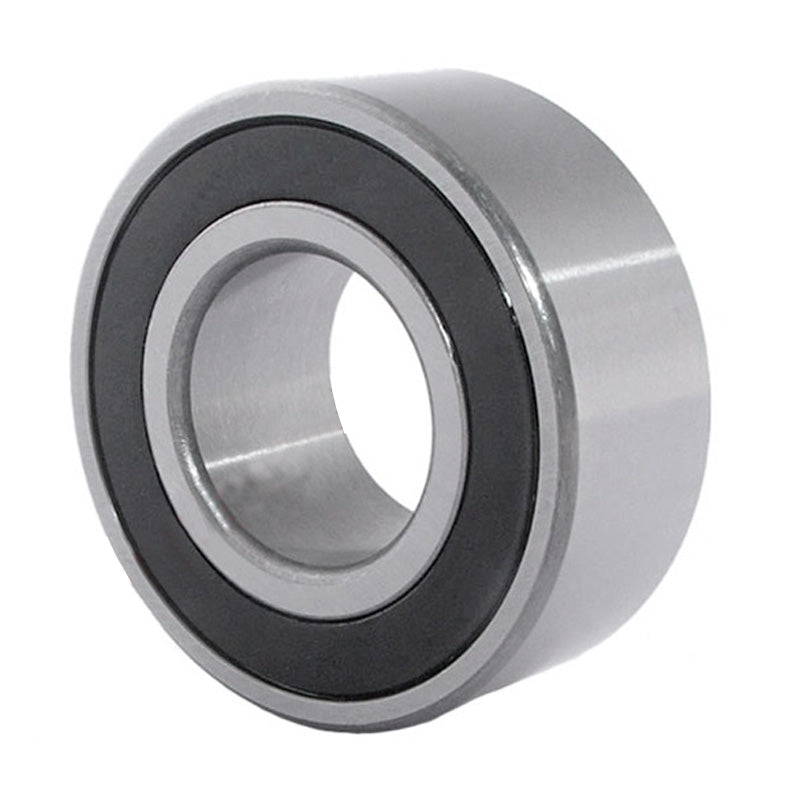

KSM 53092RS Rubber Sealed Double Row Angular Contact Ball Bearing 45x100x39.7mm
- Regular price
- $132.35 ex VAT
- Sale price
- $132.35
- Regular price
-
In stock
Quantity Price Breaks
4
$117.79
9
$111.17
19
$109.85
29
$108.53
49
$107.20
99
$105.88
179
$99.26
249
$97.94
499
$96.62
699
$95.29
999
$92.65
SKU:
5309-2RS-KSM
KSM 53092RS Rubber Sealed Double Row Angular Contact Ball Bearing 45x100x39.7mm
- Regular price
- $132.35 ex VAT
- Sale price
- $132.35
- Regular price
-
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Technical
| --- | = | Bearing Dimensions |
| d | = | 45mm |
| D | = | 100mm |
| B | = | 39.7mm |
| --- | = | Abutment Dimensions |
| a | = | 60mm |
| r1r2 min | = | 1.5mm |
| r1r2 max | = | 1.5mm |
| Da min | = | 53.5mm |
| da max | = | 91.5mm |
| --- | = | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | = | 72500 N |
| Basic Static Load Raiting Cor | = | 54000 N |
| Limiting Speed in Grease | = | 1000 rpm |
| Limiting Speed in Oil | = | 5300 rpm |
| Weight | = | 1.34 kg |
