SKU: 52306.MB

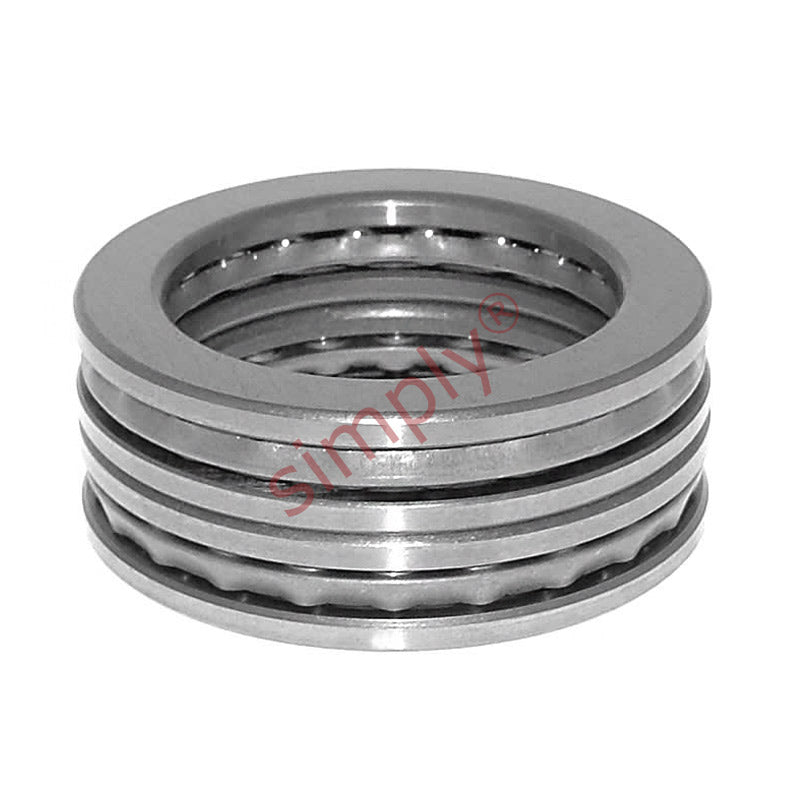

52306 Double Thrust Ball Bearing with Flat Seats 25x60x38mm
- Regular price
- $137.65 ex VAT
- Sale price
- $137.65
- Regular price
-
Not in stock
Quantity Price Breaks
10
$122.51
19
$115.63
29
$114.25
39
$112.87
49
$111.50
74
$110.12
99
$103.24
199
$101.86
249
$100.48
499
$99.11
999
$96.36
SKU:
52306.MB
52306 Double Thrust Ball Bearing with Flat Seats 25x60x38mm
- Regular price
- $137.65 ex VAT
- Sale price
- $137.65
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 25mm |
| D | = | 60mm |
| H | = | 38mm |
| Dynamic load C | = | 37.7 kN |
| Static load Co | = | 71 kN |
| Fatigue load Pu | = | 2.65 kN |
| Minimum load factor A | = | 0.026 |
| Reference speed | = | 3800 rpm |
| Limiting speed | = | 5300 rpm |
| Weight | = | 0.47 kg |
| D1 | = | 32mm |
| B | = | 9mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.3mm |
| da | = | 30mm |
| Da max | = | 42mm |
| ra max | = | 1mm |
| rb max | = | 0.3mm |
