SKU: 52305.MB

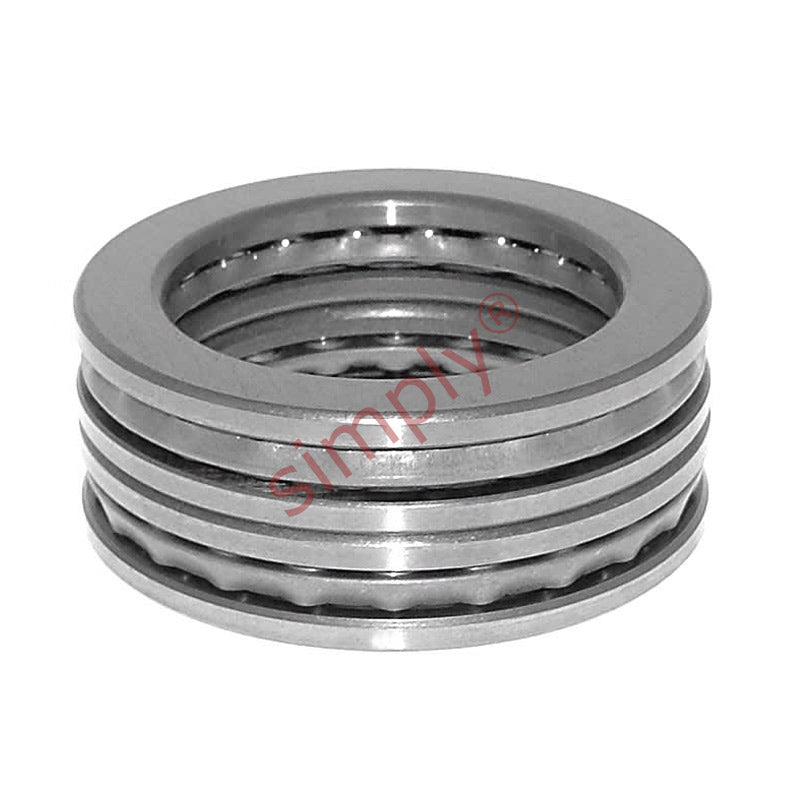

52305 Double Thrust Ball Bearing with Flat Seats 20x52x34mm
- Regular price
- $127.98 ex VAT
- Sale price
- $127.98
- Regular price
-
Not in stock
Quantity Price Breaks
10
$113.90
19
$107.50
29
$106.22
39
$104.94
49
$103.66
74
$102.38
99
$95.99
199
$94.71
249
$93.43
499
$92.15
999
$89.59
SKU:
52305.MB
52305 Double Thrust Ball Bearing with Flat Seats 20x52x34mm
- Regular price
- $127.98 ex VAT
- Sale price
- $127.98
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 20mm |
| D | = | 52mm |
| H | = | 34mm |
| Dynamic load C | = | 34.5 kN |
| Static load Co | = | 60 kN |
| Fatigue load Pu | = | 2.24 kN |
| Minimum load factor A | = | 0.018 |
| Reference speed | = | 4500 rpm |
| Limiting speed | = | 6300 rpm |
| Weight | = | 0.33 kg |
| D1 | = | 27mm |
| B | = | 8mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.3mm |
| da | = | 25mm |
| Da max | = | 36mm |
| ra max | = | 1mm |
| rb max | = | 0.3mm |
