SKU: 52230.MB

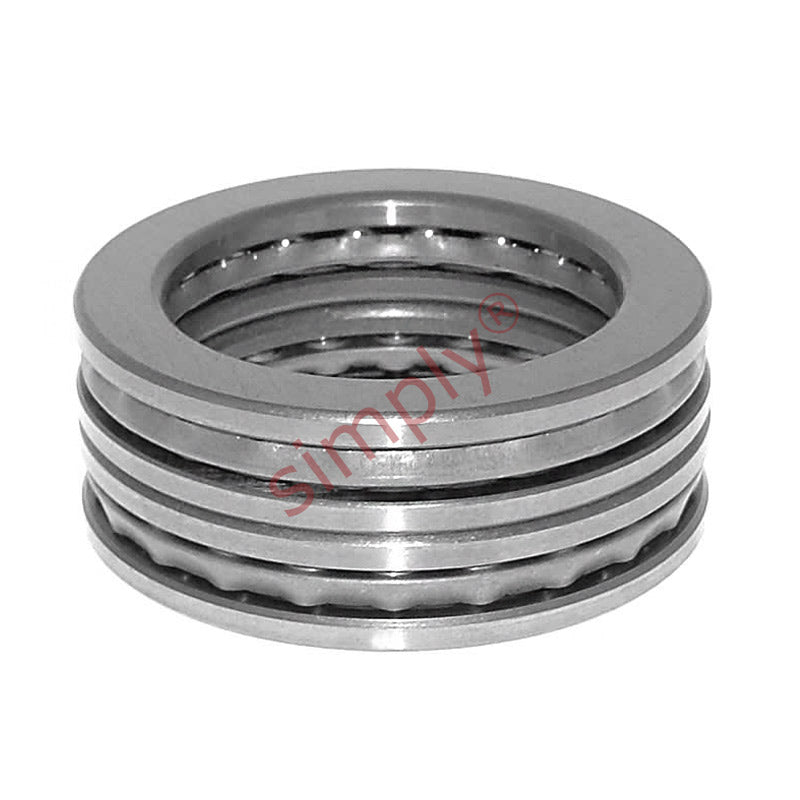

52230 Double Thrust Ball Bearing with Flat Seats 130x215x89mm
- Regular price
- $2,382.81 ex VAT
- Sale price
- $2,382.81
- Regular price
-
Not in stock
Quantity Price Breaks
10
$2,120.70
19
$2,001.56
29
$1,977.73
39
$1,953.90
49
$1,930.08
74
$1,906.25
99
$1,787.11
199
$1,763.28
249
$1,739.45
499
$1,715.62
999
$1,667.97
SKU:
52230.MB
52230 Double Thrust Ball Bearing with Flat Seats 130x215x89mm
- Regular price
- $2,382.81 ex VAT
- Sale price
- $2,382.81
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 130mm |
| D | = | 215mm |
| H | = | 89mm |
| Dynamic load C | = | 238 kN |
| Static load Co | = | 800 kN |
| Fatigue load Pu | = | 22 kN |
| Minimum load factor A | = | 3.3 |
| Reference speed | = | 1300 rpm |
| Limiting speed | = | 1800 rpm |
| Weight | = | 11.5 kg |
| D1 | = | 153mm |
| B | = | 20mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.1mm |
| da | = | 150mm |
| Da max | = | 176mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
