SKU: 52226.MB

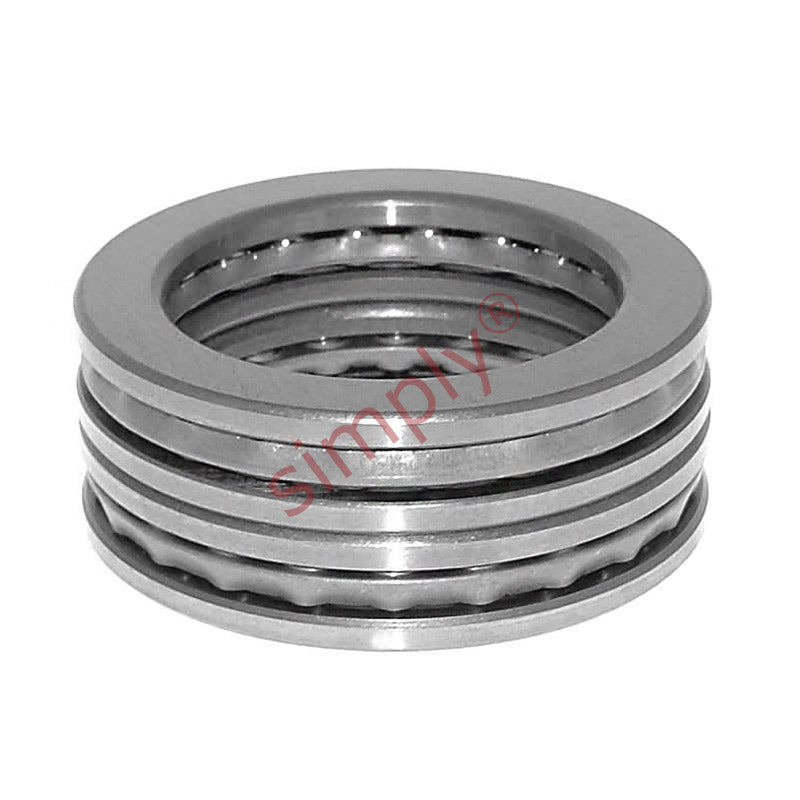

52226 Double Thrust Ball Bearing with Flat Seats 110x190x80mm
- Regular price
- $934.24 ex VAT
- Sale price
- $934.24
- Regular price
-
Not in stock
Quantity Price Breaks
10
$831.47
19
$784.76
29
$775.42
39
$766.08
49
$756.73
74
$747.39
99
$700.68
199
$691.34
249
$682.00
499
$672.65
999
$653.97
SKU:
52226.MB
52226 Double Thrust Ball Bearing with Flat Seats 110x190x80mm
- Regular price
- $934.24 ex VAT
- Sale price
- $934.24
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 110mm |
| D | = | 190mm |
| H | = | 80mm |
| Dynamic load C | = | 186 kN |
| Static load Co | = | 585 kN |
| Fatigue load Pu | = | 17 kN |
| Minimum load factor A | = | 1.8 |
| Reference speed | = | 1400 rpm |
| Limiting speed | = | 2000 rpm |
| Weight | = | 8 kg |
| D1 | = | 133mm |
| B | = | 18mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.1mm |
| da | = | 130mm |
| Da max | = | 154mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
