SKU: 52216.MB

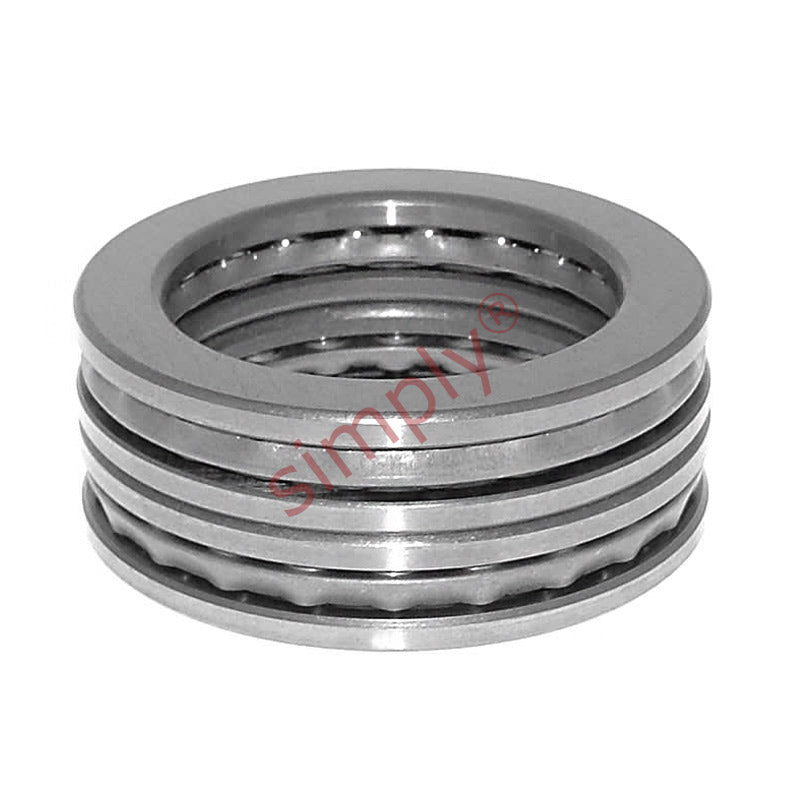

52216 Double Thrust Ball Bearing with Flat Seats 65x115x48mm
- Regular price
- $343.41 ex VAT
- Sale price
- $343.41
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
$305.63
19
$288.46
29
$285.03
39
$281.60
49
$278.16
74
$274.73
99
$257.56
199
$254.12
249
$250.69
499
$247.26
999
$240.39
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 65mm |
| D | = | 115mm |
| H | = | 48mm |
| Dynamic load C | = | 76.1 kN |
| Static load Co | = | 208 kN |
| Fatigue load Pu | = | 7.65 kN |
| Minimum load factor A | = | 0.22 |
| Reference speed | = | 2400 rpm |
| Limiting speed | = | 3400 rpm |
| Weight | = | 1.7 kg |
| D1 | = | 82mm |
| B | = | 10mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 1mm |
| da | = | 80mm |
| Da max | = | 94mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
