SKU: 51406-CDX

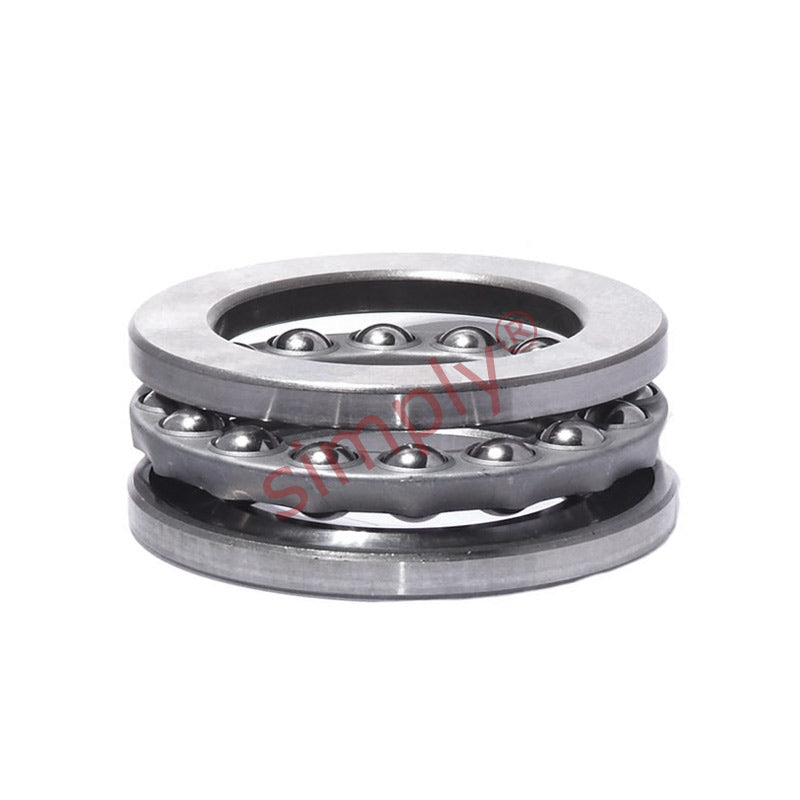

Codex 51406 Single Thrust Ball Bearing 30x70x28mm
- Regular price
- $88.52 ex VAT
- Sale price
- $88.52
- Regular price
-
In stock
Quantity Price Breaks
10
$78.78
19
$74.36
29
$73.47
39
$72.59
49
$71.70
74
$70.82
99
$66.39
199
$65.50
249
$64.62
499
$63.73
999
$61.96
SKU:
51406-CDX
Codex 51406 Single Thrust Ball Bearing 30x70x28mm
- Regular price
- $88.52 ex VAT
- Sale price
- $88.52
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 30 |
| D | = | 70 |
| H | = | 28 |
| Dynamic Load | = | 72.8 kN |
| Static Load | = | 137 kN |
| Pu | = | 5.1 |
| A | = | 0.097 |
| Ref Speed | = | 3000 rpm |
| Limiting Speed | = | 4300 rpm |
| kg | = | 0.52 |
| d1 | = | 70 |
| D1 | = | 32 |
| r1r2 min | = | 1 |
| da min | = | 54 |
| Da max | = | 46 |
| ra max | = | 1 |
