SKU: 51309-CDX

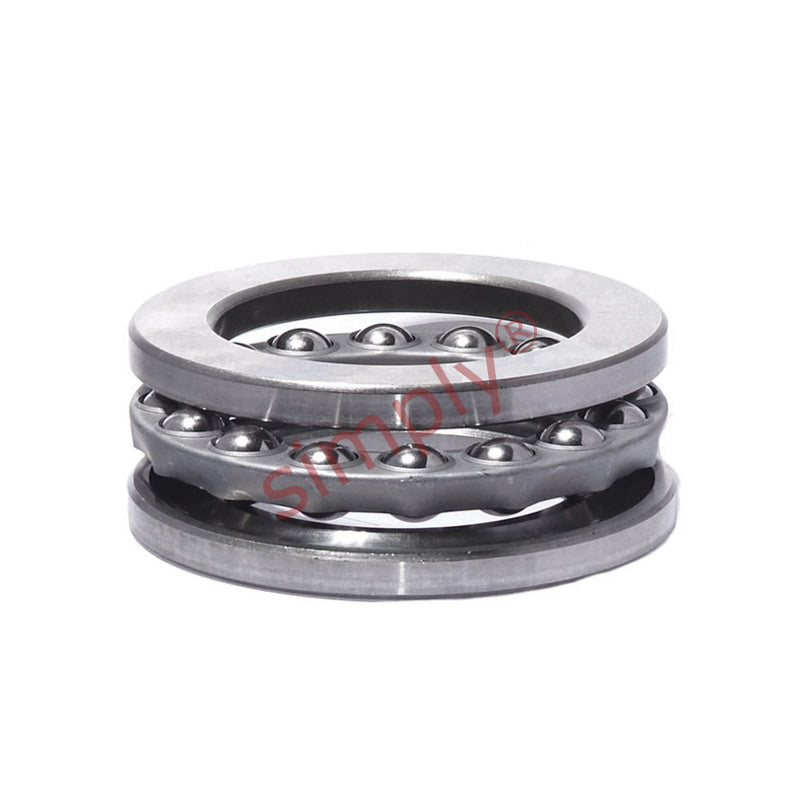

Codex 51309 Single Thrust Ball Bearing 45x85x28mm
- Regular price
- $82.01 ex VAT
- Sale price
- $82.01
- Regular price
-
In stock
Quantity Price Breaks
10
$72.99
19
$68.89
29
$68.07
39
$67.25
49
$66.43
74
$65.61
99
$61.51
199
$60.69
249
$59.87
499
$59.05
999
$57.41
SKU:
51309-CDX
Codex 51309 Single Thrust Ball Bearing 45x85x28mm
- Regular price
- $82.01 ex VAT
- Sale price
- $82.01
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 45 |
| D | = | 85 |
| H | = | 28 |
| Dynamic Load | = | 76.1 kN |
| Static Load | = | 153 kN |
| Pu | = | 5.6 |
| A | = | 0.12 |
| Ref Speed | = | 2800 rpm |
| Limiting Speed | = | 4000 rpm |
| kg | = | 0.66 |
| d1 | = | 85 |
| D1 | = | 47 |
| r1r2 min | = | 1 |
| da min | = | 69 |
| Da max | = | 61 |
| ra max | = | 1 |
