SKU: 51307-CDX

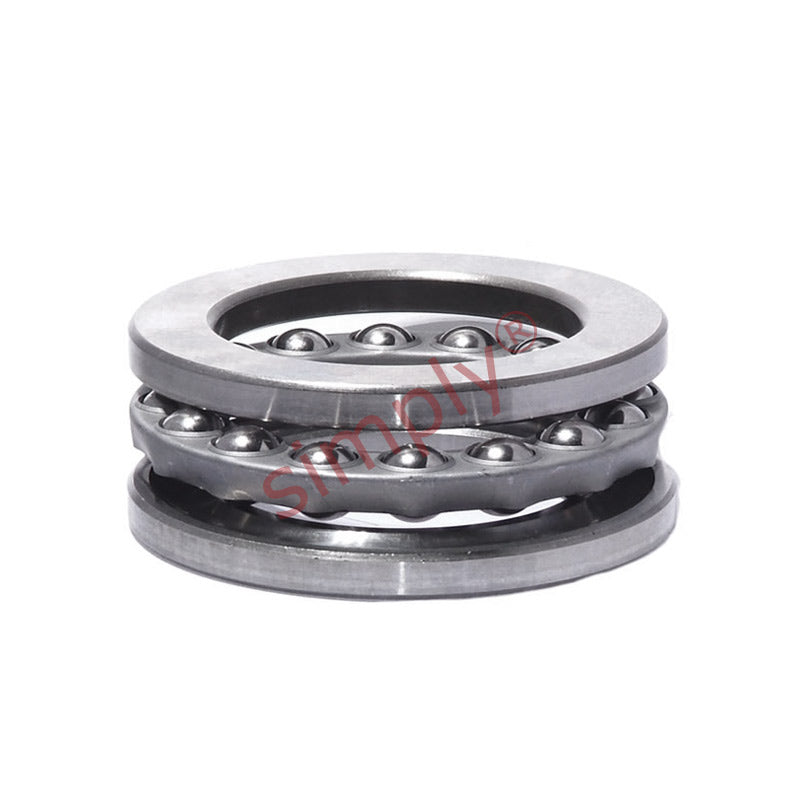

Codex 51307 Single Thrust Ball Bearing 35x68x24mm
- Regular price
- $56.31 ex VAT
- Sale price
- $56.31
- Regular price
-
In stock
Quantity Price Breaks
10
$50.12
19
$47.30
29
$46.74
39
$46.17
49
$45.61
74
$45.05
99
$42.23
199
$41.67
249
$41.11
499
$40.54
999
$39.42
SKU:
51307-CDX
Codex 51307 Single Thrust Ball Bearing 35x68x24mm
- Regular price
- $56.31 ex VAT
- Sale price
- $56.31
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 35 |
| D | = | 68 |
| H | = | 24 |
| Dynamic Load | = | 49.4 kN |
| Static Load | = | 96.5 kN |
| Pu | = | 3.55 |
| A | = | 0.048 |
| Ref Speed | = | 3200 rpm |
| Limiting Speed | = | 4500 rpm |
| kg | = | 0.39 |
| d1 | = | 68 |
| D1 | = | 37 |
| r1r2 min | = | 1 |
| da min | = | 55 |
| Da max | = | 48 |
| ra max | = | 1 |
