SKU: 51217-CDX

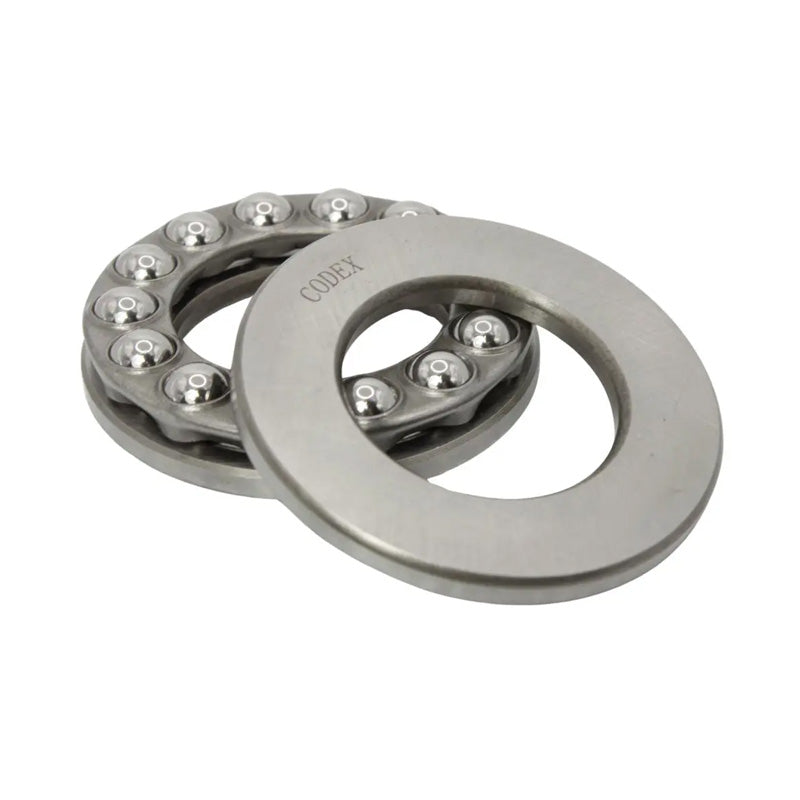

Codex 51217 Single Thrust Ball Bearing 85x125x31mm
- Regular price
- $151.48 ex VAT
- Sale price
- $151.48
- Regular price
-
In stock
Quantity Price Breaks
10
$134.82
19
$127.24
29
$125.73
39
$124.21
49
$122.70
74
$121.18
99
$113.61
199
$112.10
249
$110.58
499
$109.07
999
$106.04
SKU:
51217-CDX
Codex 51217 Single Thrust Ball Bearing 85x125x31mm
- Regular price
- $151.48 ex VAT
- Sale price
- $151.48
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 85 |
| D | = | 125 |
| H | = | 31 |
| Dynamic Load | = | 97.5 kN |
| Static Load | = | 275 kN |
| Pu | = | 9.8 |
| A | = | 0.39 |
| Ref Speed | = | 2200 rpm |
| Limiting Speed | = | 3000 rpm |
| kg | = | 1.2 |
| d1 | = | 125 |
| D1 | = | 88 |
| r1r2 min | = | 1 |
| da min | = | 109 |
| Da max | = | 101 |
| ra max | = | 1 |
