SKU: 51212-CDX

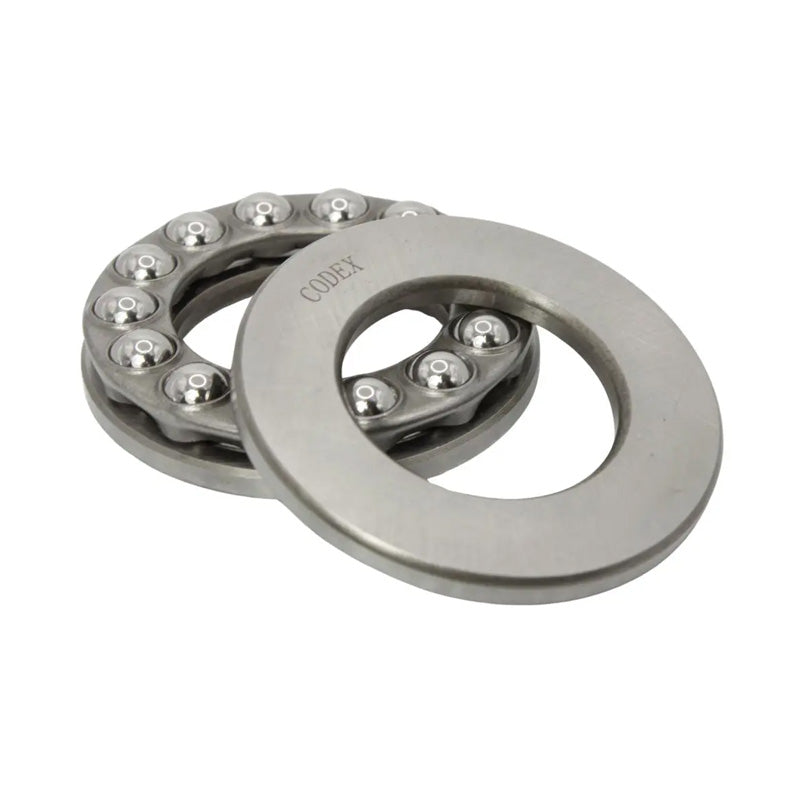

Codex 51212 Single Thrust Ball Bearing 60x95x26mm
- Regular price
- $84.70 ex VAT
- Sale price
- $84.70
- Regular price
-
In stock
Quantity Price Breaks
10
$75.38
19
$71.15
29
$70.30
39
$69.45
49
$68.61
74
$67.76
99
$63.53
199
$62.68
249
$61.83
499
$60.98
999
$59.29
SKU:
51212-CDX
Codex 51212 Single Thrust Ball Bearing 60x95x26mm
- Regular price
- $84.70 ex VAT
- Sale price
- $84.70
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 60 |
| D | = | 95 |
| H | = | 26 |
| Dynamic Load | = | 62.4 kN |
| Static Load | = | 150 kN |
| Pu | = | 5.6 |
| A | = | 0.12 |
| Ref Speed | = | 2800 rpm |
| Limiting Speed | = | 3800 rpm |
| kg | = | 0.65 |
| d1 | = | 95 |
| D1 | = | 62 |
| r1r2 min | = | 1 |
| da min | = | 81 |
| Da max | = | 74 |
| ra max | = | 1 |
