SKU: 51209-CDX
Codex 51209 Single Thrust Ball Bearing 45x73x20mm
- Regular price
- $50.52 ex VAT
- Sale price
- $50.52
- Regular price
-
In stock
Quantity Price Breaks
10
$44.96
19
$42.44
29
$41.93
39
$41.43
49
$40.92
74
$40.42
99
$37.89
199
$37.38
249
$36.88
499
$36.37
999
$35.36
SKU:
51209-CDX
Codex 51209 Single Thrust Ball Bearing 45x73x20mm
- Regular price
- $50.52 ex VAT
- Sale price
- $50.52
- Regular price
-
Description

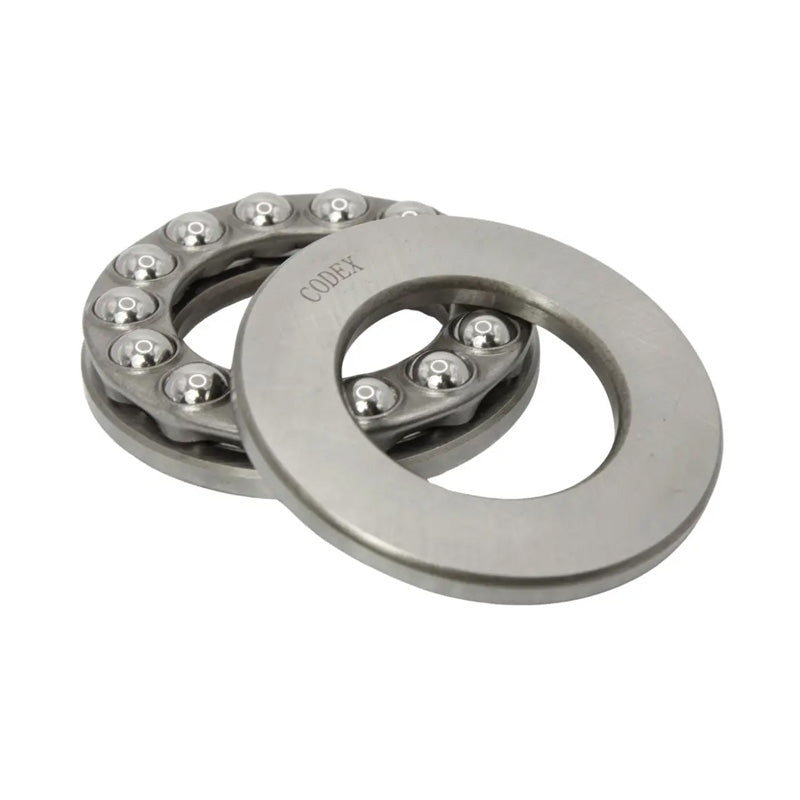

Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 45 |
| D | = | 73 |
| H | = | 20 |
| Dynamic Load | = | 39 kN |
| Static Load | = | 86.5 kN |
| Pu | = | 3.2 |
| A | = | 0.038 |
| Ref Speed | = | 3600 rpm |
| Limiting Speed | = | 5000 rpm |
| kg | = | 0.3 |
| d1 | = | 73 |
| D1 | = | 47 |
| r1r2 min | = | 1 |
| da min | = | 62 |
| Da max | = | 56 |
| ra max | = | 1 |
