SKU: 51208-CDX

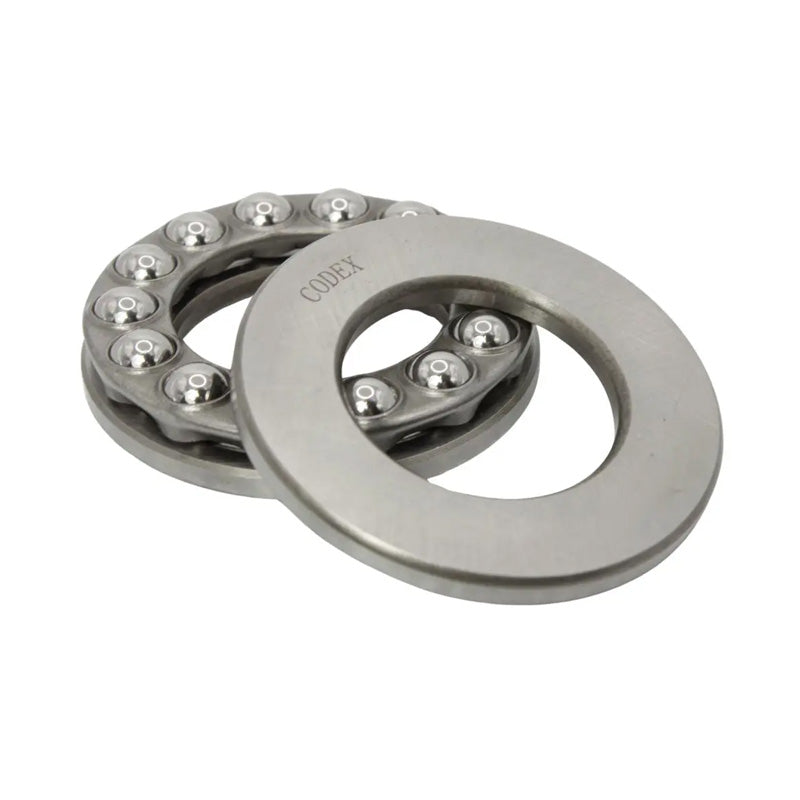

Codex 51208 Single Thrust Ball Bearing 40x68x19mm
- Regular price
- $46.11 ex VAT
- Sale price
- $46.11
- Regular price
-
In stock
Quantity Price Breaks
10
$41.04
19
$38.73
29
$38.27
39
$37.81
49
$37.35
74
$36.89
99
$34.58
199
$34.12
249
$33.66
499
$33.20
999
$32.28
SKU:
51208-CDX
Codex 51208 Single Thrust Ball Bearing 40x68x19mm
- Regular price
- $46.11 ex VAT
- Sale price
- $46.11
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 40 |
| D | = | 68 |
| H | = | 19 |
| Dynamic Load | = | 46.8 kN |
| Static Load | = | 106 kN |
| Pu | = | 4 |
| A | = | 0.058 |
| Ref Speed | = | 3800 rpm |
| Limiting Speed | = | 5300 rpm |
| kg | = | 0.28 |
| d1 | = | 68 |
| D1 | = | 42 |
| r1r2 min | = | 1 |
| da min | = | 57 |
| Da max | = | 51 |
| ra max | = | 1 |
