SKU: 51206-CDX

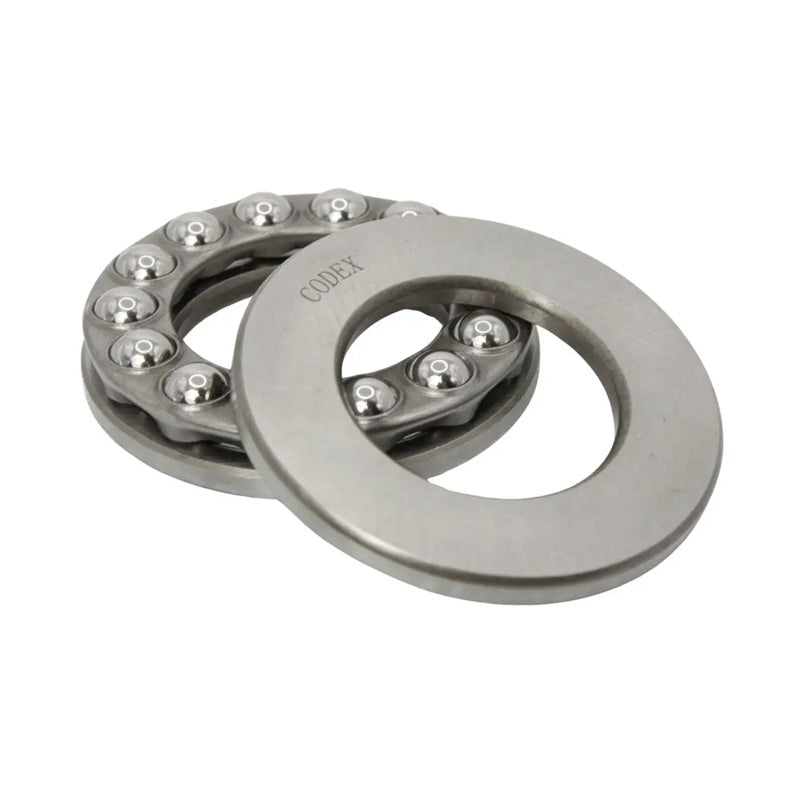

Codex 51206 Single Thrust Ball Bearing 30x52x16mm
- Regular price
- $33.28 ex VAT
- Sale price
- $33.28
- Regular price
-
In stock
Quantity Price Breaks
10
$29.62
19
$27.96
29
$27.62
39
$27.29
49
$26.96
74
$26.62
99
$24.96
199
$24.63
249
$24.29
499
$23.96
999
$23.30
SKU:
51206-CDX
Codex 51206 Single Thrust Ball Bearing 30x52x16mm
- Regular price
- $33.28 ex VAT
- Sale price
- $33.28
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 30 |
| D | = | 52 |
| H | = | 16 |
| Dynamic Load | = | 25.5 kN |
| Static Load | = | 51 kN |
| Pu | = | 1.9 |
| A | = | 0.013 |
| Ref Speed | = | 4800 rpm |
| Limiting Speed | = | 6700 rpm |
| kg | = | 0.13 |
| d1 | = | 52 |
| D1 | = | 32 |
| r1r2 min | = | 0.6 |
| da min | = | 43 |
| Da max | = | 39 |
| ra max | = | 0.6 |
