SKU: 51205-CDX

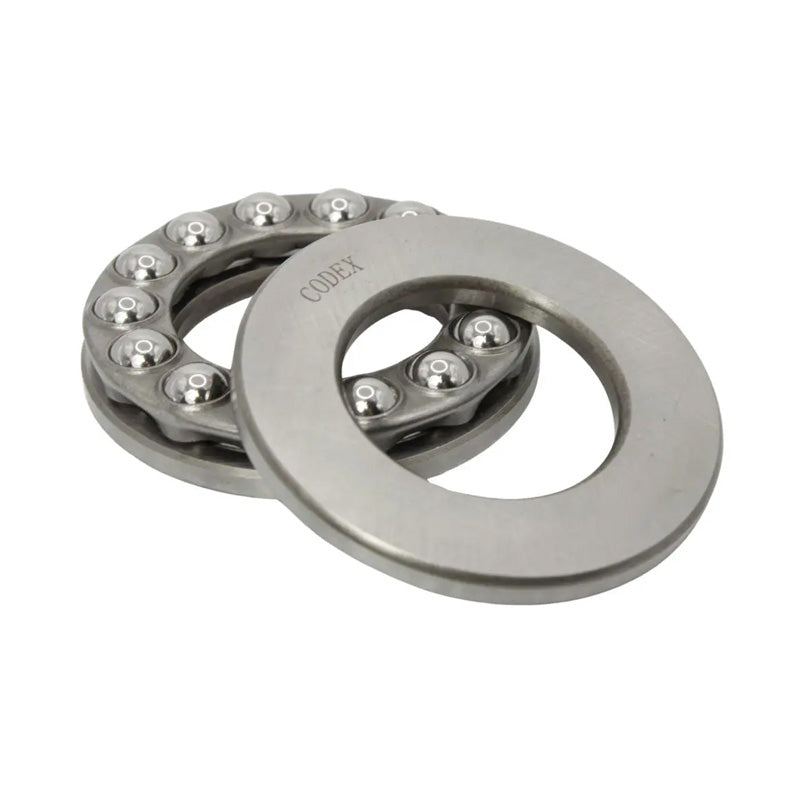

Codex 51205 Single Thrust Ball Bearing 25x47x15mm
- Regular price
- $29.48 ex VAT
- Sale price
- $29.48
- Regular price
-
In stock
Quantity Price Breaks
10
$26.24
19
$24.76
29
$24.47
39
$24.17
49
$23.88
74
$23.58
99
$22.11
199
$21.82
249
$21.52
499
$21.23
999
$20.64
SKU:
51205-CDX
Codex 51205 Single Thrust Ball Bearing 25x47x15mm
- Regular price
- $29.48 ex VAT
- Sale price
- $29.48
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 25 |
| D | = | 47 |
| H | = | 15 |
| Dynamic Load | = | 27.6 kN |
| Static Load | = | 55 kN |
| Pu | = | 2.04 |
| A | = | 0.015 |
| Ref Speed | = | 5300 rpm |
| Limiting Speed | = | 7500 rpm |
| kg | = | 0.11 |
| d1 | = | 47 |
| D1 | = | 27 |
| r1r2 min | = | 0.6 |
| da min | = | 38 |
| Da max | = | 34 |
| ra max | = | 0.6 |
