SKU: 51120-CDX

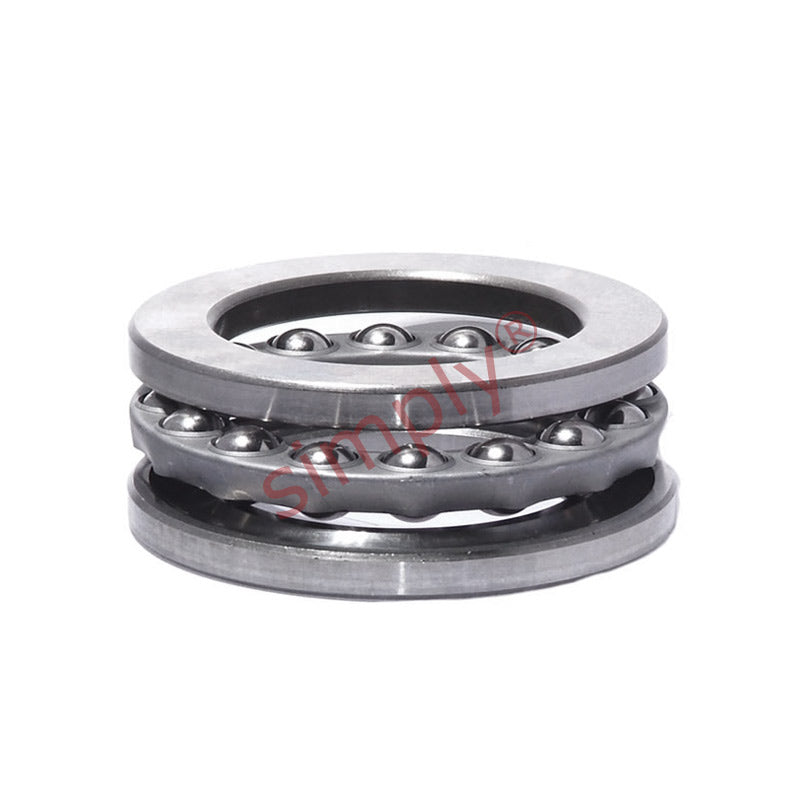

Codex 51120 Single Thrust Ball Bearing 100x135x25mm
- Regular price
- $154.02 ex VAT
- Sale price
- $154.02
- Regular price
-
In stock
Quantity Price Breaks
10
$137.08
19
$129.38
29
$127.84
39
$126.30
49
$124.76
74
$123.22
99
$115.52
199
$113.97
249
$112.43
499
$110.89
999
$107.81
SKU:
51120-CDX
Codex 51120 Single Thrust Ball Bearing 100x135x25mm
- Regular price
- $154.02 ex VAT
- Sale price
- $154.02
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 100 |
| D | = | 135 |
| H | = | 25 |
| Dynamic Load | = | 85.2 kN |
| Static Load | = | 290 kN |
| Pu | = | 10 |
| A | = | 0.44 |
| Ref Speed | = | 2400 rpm |
| Limiting Speed | = | 3200 rpm |
| kg | = | 0.97 |
| d1 | = | 135 |
| D1 | = | 102 |
| r1r2 min | = | 1 |
| da min | = | 121 |
| Da max | = | 114 |
| ra max | = | 1 |
