SKU: 51102-CDX

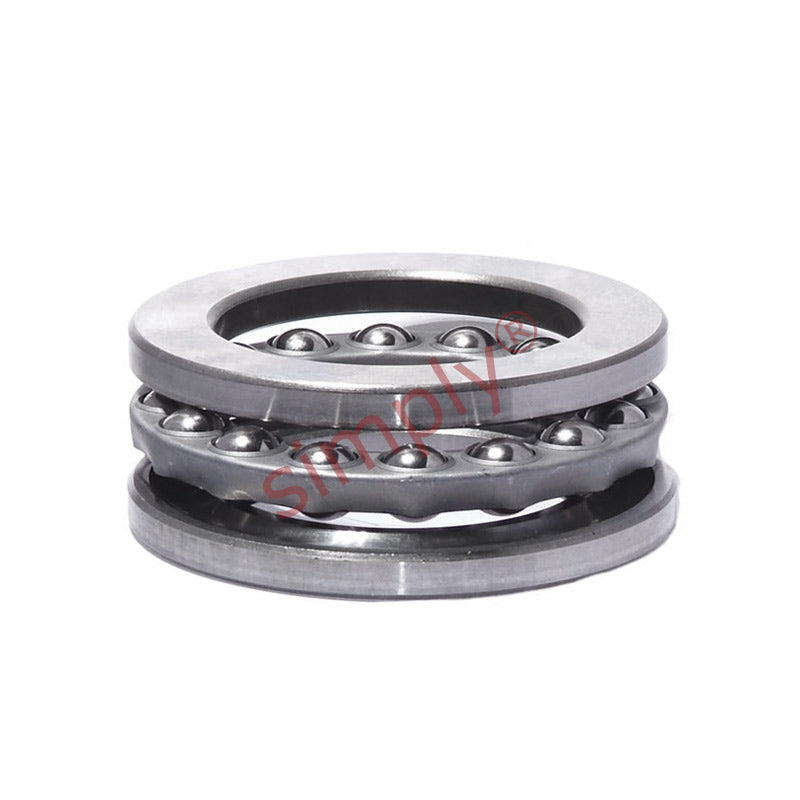

Codex 51102 Single Thrust Ball Bearing 15x28x9mm
- Regular price
- $18.04 ex VAT
- Sale price
- $18.04
- Regular price
-
In stock
Quantity Price Breaks
10
$16.06
19
$15.15
29
$14.97
39
$14.79
49
$14.61
74
$14.43
99
$13.53
199
$13.35
249
$13.17
499
$12.99
999
$12.63
SKU:
51102-CDX
Codex 51102 Single Thrust Ball Bearing 15x28x9mm
- Regular price
- $18.04 ex VAT
- Sale price
- $18.04
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 15 |
| D | = | 28 |
| H | = | 9 |
| Dynamic Load | = | 10.6 kN |
| Static Load | = | 18.3 kN |
| Pu | = | 0.67 |
| A | = | 0.0017 |
| Ref Speed | = | 8500 rpm |
| Limiting Speed | = | 12000 rpm |
| kg | = | 0.023 |
| d1 | = | 28 |
| D1 | = | 16 |
| r1r2 min | = | 0.3 |
| da min | = | 23 |
| Da max | = | 20 |
| ra max | = | 0.3 |
