SKU: 50-2-SYN-NO30-RENOLD

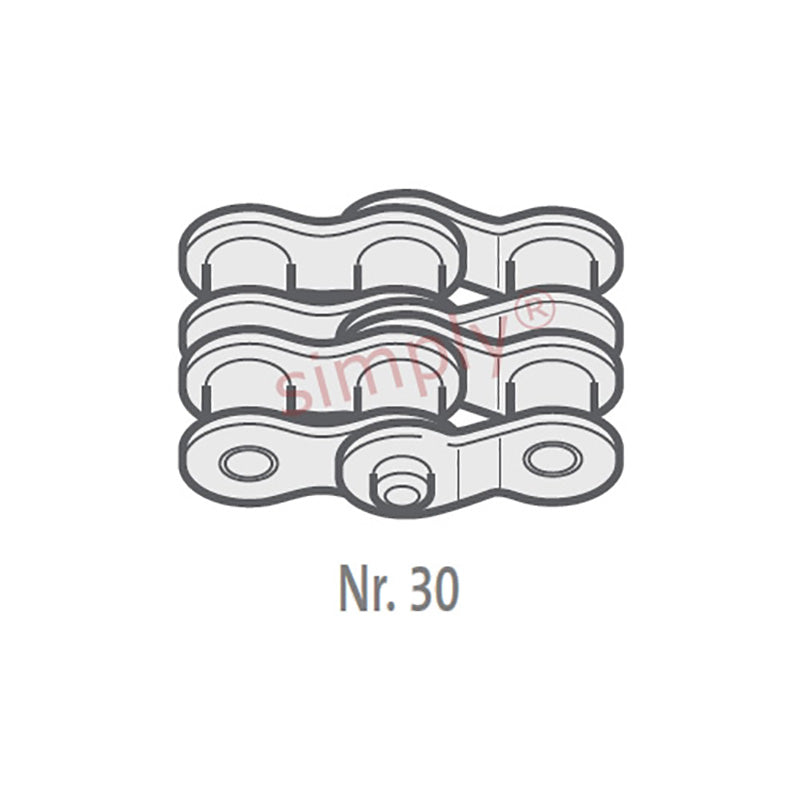

Renold Synergy 50-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $82.62 ex VAT
- Sale price
- $82.62
- Regular price
-
Not in stock
Quantity Price Breaks
2
$73.53
5
$69.40
10
$68.57
29
$67.75
49
$66.92
75
$66.10
100
$61.97
200
$61.14
250
$60.31
500
$59.49
1000
$57.83
SKU:
50-2-SYN-NO30-RENOLD
Renold Synergy 50-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $82.62 ex VAT
- Sale price
- $82.62
- Regular price
-
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 38.4mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 43600 N |
| Weight | = | 0.01kg/m |
