SKU: 50-2-BB-NO12-RENOLD
Renold Blue Box 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- $39.11 ex VAT
- Sale price
- $39.11
- Regular price
-
In stock
Quantity Price Breaks
2
$34.81
5
$32.85
10
$32.46
29
$32.07
49
$31.68
75
$31.29
100
$29.33
200
$28.94
250
$28.55
500
$28.16
1000
$27.38
SKU:
50-2-BB-NO12-RENOLD
Renold Blue Box 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
- Regular price
- $39.11 ex VAT
- Sale price
- $39.11
- Regular price
-
Description

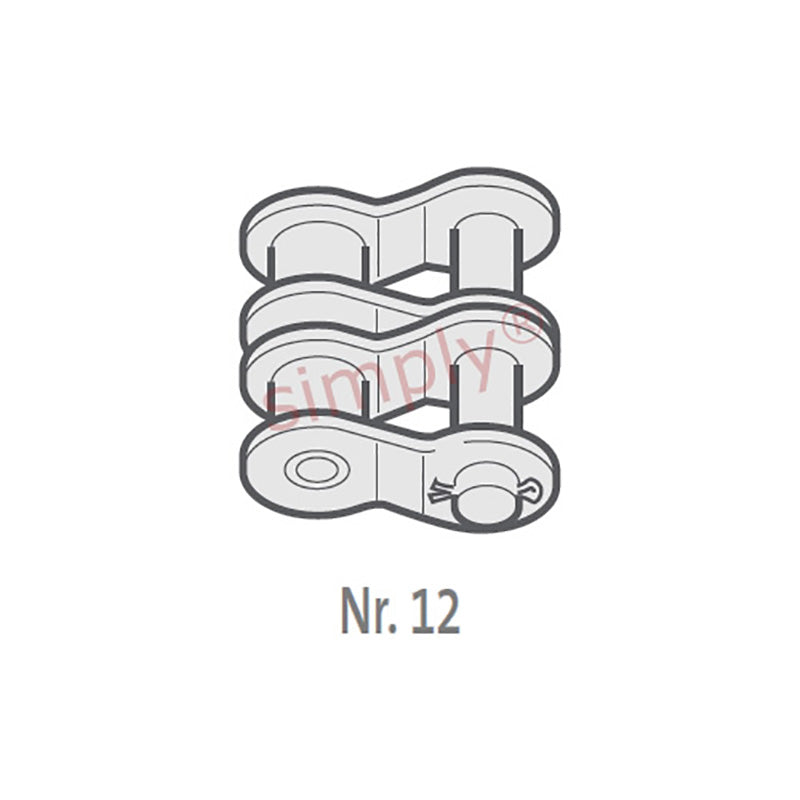

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 38.4mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 43600 N |
| Weight | = | 0.01kg/m |
