SKU: 50-1-SYN-NO30-RENOLD
Renold Synergy 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $46.11 ex VAT
- Sale price
- $46.11
- Regular price
-
Not in stock
Quantity Price Breaks
2
$41.04
5
$38.73
10
$38.27
29
$37.81
49
$37.35
75
$36.89
100
$34.58
200
$34.12
250
$33.66
500
$33.20
1000
$32.28
SKU:
50-1-SYN-NO30-RENOLD
Renold Synergy 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $46.11 ex VAT
- Sale price
- $46.11
- Regular price
-
Description

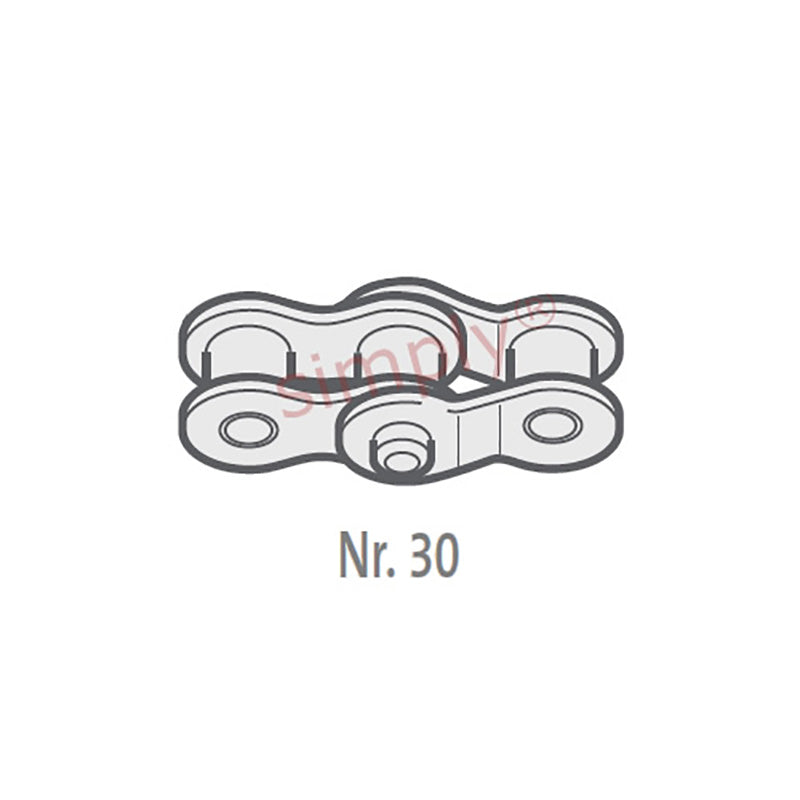

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 20.4mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| ISO606 Tensile Strength min | = | 21800 N |
| Weight | = | 0.015kg/m |
